General Information:
Manufacturer: hewlett-packard
Part number: 399151-001

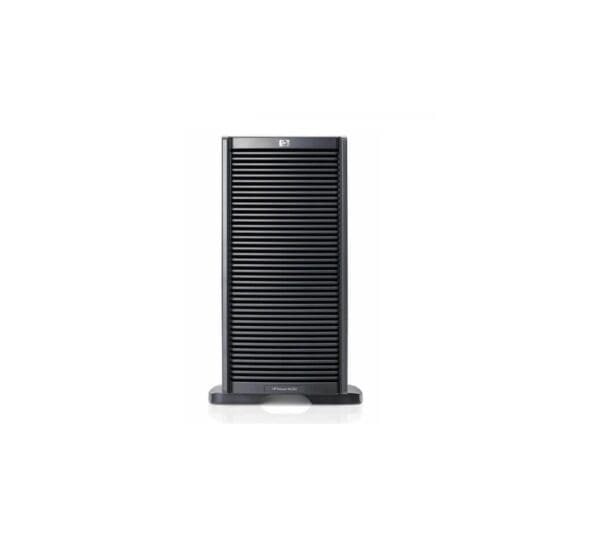

Product name: hp proliant ml150 g3 5u tower server
Processor & chipset:
Processor type: intel xeon 5050 / 3.0 ghz
Multi-core technology: dual-core (2 Core)
64-bit computing: yes
Installed processor qty: 1
Max supported qty: 2
Upgradability: upgradable
Sockets supported: plga771
Chipset type: intel 5000v
Data bus speed: 667 mhz
Cache memory:
Cache memory type: l2 cache
Installed size: 4 mb
Cache per processor: 4 mb ( 2 x 2 mb )
Memory:
Installed size: 512 mb / 8 gb (max)
Technology: ddr2 sdram – advanced ecc
Memory speed: 667 mhz
Memory specification compliance: pc2-5300
Form factor: dimm 240-pin
Features: buffered
Storage & storage controller:
Hard drive: not included
Optical storage: 48x cd-rom – ide
Storage controller type: serial ata ( serial ata-150 ) ide ( ide/ata )
Display & graphics:
Form factor: integrated
Video memory : sram
Installed size: 2 mb
Network & communication:
Type: network adapter – integrated
Interface type: pci
Compliant standards: ieee 802.3, ieee 802.3u, ieee 802.1q, ieee 802.3ab, ieee 802.1p, ieee 802.1x, ieee 802.1ad
Data link protocol: ethernet, fast ethernet, gigabit ethernet
Ethernet controller(s): hp nc7781
Features (aa): wake on lan (wol)
Expansion & connectivity:
Expansion bays total (free):
2 ( 1 ) x front accessible – 5.25 x 1/2h
6 ( 6 ) x hot-swap – 3.5 x 1/3h
Expansion slots total (free):
3 ( 3 ) x pci-x / 100 mhz
2 ( 2 ) x pci express x8
1 ( 1 ) x pci express x4
1 ( 1 ) x pci
Interfaces
1 x serial – rs-232 – 9 pin d-sub (db-9)
1 x mouse – generic – 6 pin mini-din (ps/2 style)
1 x keyboard – generic – 6 pin mini-din (ps/2 style)
1 x display / video – vga – 15 pin hd d-sub (hd-15)
1 x network – ethernet 10base-t/100base-tx/1000base (Gigabit Ethernet)
3 x 4-pin type a usb 2.0 – usb rear
2 x 4-pin type a usb 2.0 – usb front
1 x rj-45 network
Power description:
Device type: power supply
Voltage required: ac 120/230 v ( 50/60 hz )
