GENERAL INFORMATION:
Manufacturer : Hewlett-Packard
Manufacturer Part Number : 400607-B21
Product Line : ProLiant
Product Series : ML370 G5

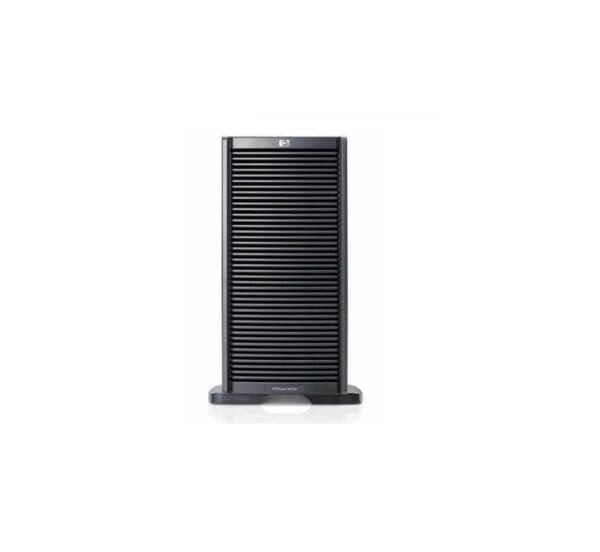

Product Name : ProLiant ML370 G5 Barebone System
Product Type : Barebone System
PROCESSOR & CHIPSET:
Processor Interface : Socket J
Processor Support : Intel Xeon (Quad-core) Up to 3.33 GHz Intel Xeon (Dual-core) Up to 3.33 GHz
Bus Speed Support : 1333 MHz 1066 MHz
Chipset : Intel 5000P
MEMORY:
Maximum Memory : 64 GB DDR2-667/PC2-5300 Fully Buffered DDR2 SDRAM ECC
STORAGE:
Maximum Internal Storage Support : 8 TB
Hot swap SAS – (16 x 500GB Hard Drives with optional 2nd SAS Drive Cage)
CONTROLLERS:
Controller : Serial Attached SCSI (SAS)
DISPLAY & GRAPHICS:
Graphics Controller : ATi ES1000 With 32 MB Integrated
NETWORK & COMMUNICATION:
Network : 2 x NC373i IEEE 802.3ab Gigabit Ethernet 10/100/1000Mbps PCI Express x4 Integrated
I/O EXPANSIONS:
Expansion Bays : 3 Bays x 5.25″ External Removable Media 8 Bays Total 8 x 2.5″ Drive Bay Total Hot-swappable
INTERFACES/PORTS:
Ports : 1 x Mouse Rear 1 x Keyboard Rear 1 x 15-pin HD-15 VGA Rear 1 x 15-pin HD-15 VGA Front 2 x RJ-45 Network Rear 1 x 9-pin DB-9 Serial Rear 1 x iLO Remote Management Rear 2 x 4-pin Type A USB 2.0 USB Rear 2 x 4-pin Type A USB 2.0 USB Front
SOFTWARE:
Operating System : Solaris Supported Windows Server Supported Oracle Enterprise Linux Supported Red Hat Enterprise Linux Supported SuSE Linux Enterprise Server Supported
