General information:
Manufacturer: hewlett-packard
Manufacturer part number: 403434-B21

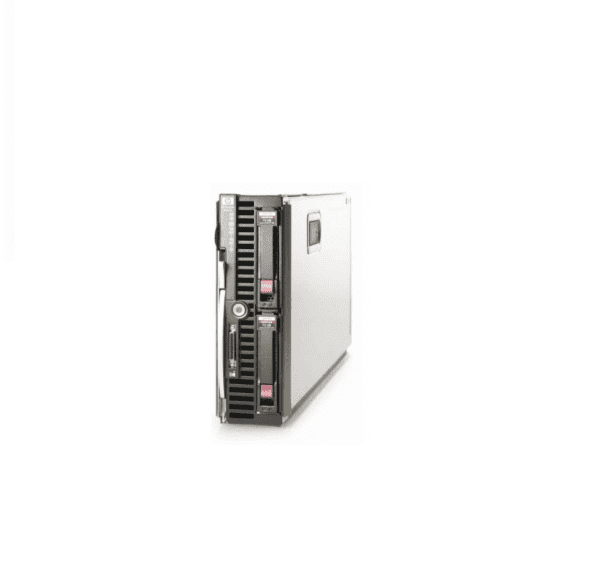

Product name: proliant bl465c
blade server
Processor & chipset:
Processor type: amd opteron second-generation opteron 2214 he / 2.2 GHz
Multi-core technology: dual-cor
64-bit computing: yes
Installed processor qty: 1
Max supported qty: 2
Power efficiency: low-power
Cache memory: 1mb level 2 cache memory per core
Chipset type: serverworks ht1000 / ht2000
Cache memory:
Type: l2 cache
Installed size: 2 mb
Cache per processor: 2 mb ( 2 x 1 mb )
Memory:
Installed ram size: 2 gb (2 x 1 gb)
Max supported size: 32 gb
Technology: ddr2 sdram – ecc
Memory speed: 667 mhz
Memory specification compliance: pc2-5300
Form factor: dimm 240-pin
Feature: registered
Memory protection: advanced ecc
Form factor: dimm 240-pin
Storage:
Hard drive: no driver included
Hard drive interface: hot plug serial attach scsi (sas)/ serial ata (sata)
Hard drive bays: (2) sff sas/sata drive bays – 2.5inch
Optical drive: none
Storage controller:
Storage controller type: 1 x raid – integrated – pci express x4
Controller interface type: serial ata-150 / sas
Storage controller name: smart array e200i
Raid level: raid 0, raid 1
Buffer size: 64 mb
Display & graphics:
Graphics: integrated ati rn-50 1280 x 1024 x 16m color (32 mb ddr1 memory)
Network & communication:
Networking: network adapter – pci-x – integrated
Ethernet ports: 2 x gigabit ethernet
Ethernet controller(s): 2 x hp nc370i
Data link protocol: ethernet, fast ethernet, gigabit ethernet
Remote management controller: integrated lights-out 2
Features: dhcp support
Compliant standards: ieee 802.3, ieee 802.3u, ieee 802.1q, ieee 802.3ab, ieee 802.3x, ieee 802.3ad (lacp), ieee 802.3p
Two (2) embedded nc370i multifunction gigabit server adapters with tcp/ip offload engine for microsoft windows
One (1) additional 10/100 server adapter dedicated to ilo 2 management
I/o expansions:
Expansion bays:
2(2) hot-swap 2.5 sff (2 Bays)
Expansion slots:
2 i/o expansion mezzanine slots (one x8 and one x4 pci express)
2 (1) processor slot
8 (6) memory slot – dimm 240 pin
I/o ports:
1 x management – hp ilo – rj-45
2 x network – ethernet 10base-t/100base-tx/1000base-t – rj-45
1 x display / video – 15 pin hd d-sub (hd-15)
