GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 405660-B21

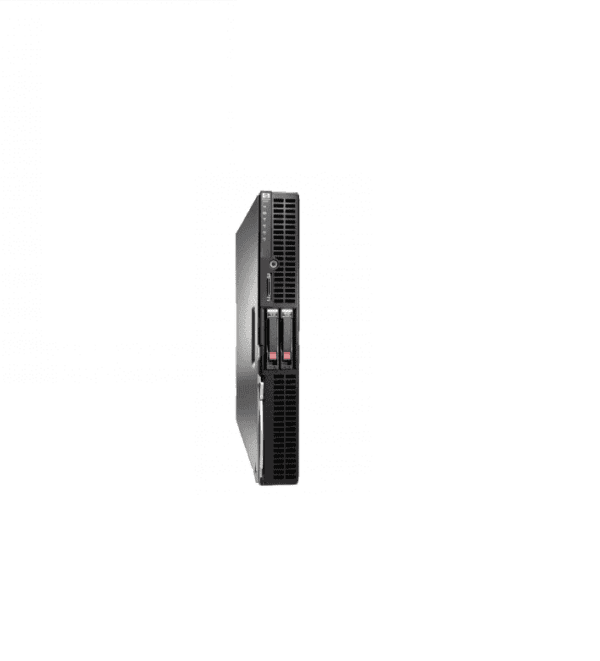

Product Name: Proliant Bl685c G1
Blade Server
PROCESSOR & CHIPSET:
Processor Type: Amd Opteron Second-Generation Opteron 8216 / 2.4 GHz
Multi-Core Technology: Dual-Cor
64-Bit Computing: Yes
Installed Processor Qty: 2
Max Supported Qty: 4
Upgradability: Upgradable
CACHE MEMORY:
Cache Memory Type: L2 Cache
Installed Size: 4 MB
Cache Per Processor: 2 MB
MEMORY:
Installed Ram Size: 4 Gb / 64 Gb (Max)
Technology: Ddr2 Sdram – Advanced Ec
Memory Speed: 667 Mhz
Memory Specification Compliance: Pc2-530
Form Factor: Dimm 240-Pin
Features: Registered
Configuration Features: 4 X 1 Gb
STORAGE:
Hard Drive: None.
STORAGE CONTROLLER:
Storage Controller Type: 1 X Raid – Integrated
Controller Interface Type: Serial Ata-150 / Sas
Storage Controller Name: Smart Array E200i
Raid Level: Raid 0, Raid 1, Raid 10
Buffer Size: 64 Mb
DISPLAY & GRAPHICS CONTROLLER:
Graphics Controller Type: Integrated
Video Memory: Ddr Sdram
Installed Size: 32 Mb
NETWORKING:
Networking: Network Adapter – Pci Express X4 – Integrated
One Embedded : Nc326i Dual Port Gigabit Server Adapter
Two Embedded : Nc373i Multifunction Gigabit Server Adapters
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
