GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 411359-001

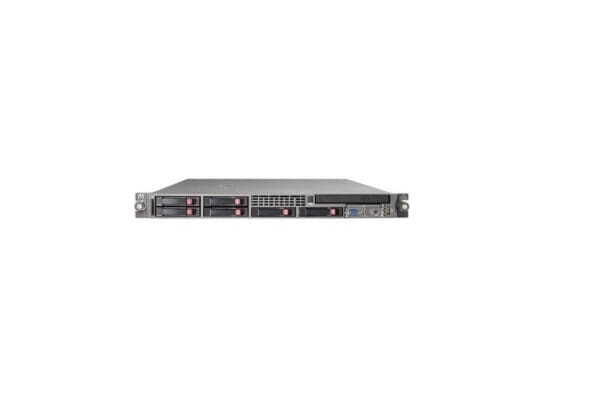

Product Name: Proliant Dl365 G1 Base Server
PROCESSOR & CHIPSET:
Processor Type: Amd Second-Generation Opteron 2214 He / 2.2 Ghz
Multi-Core Technology: Dual-Core
64-Bit Computing: Yes
Installed Processor Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable
Data Bus Speed: 1000 Mhz
CACHE MEMORY:
Cache Memory Type: L2 Cache
Installed Size: 2 Mb
Cache Per Processor: 2 Mb ( 2 X 1 Mb )
MEMORY:
Installed Ram Size: 1 Gb / 32 Gb (Max
Technology: Ddr2 Sdram
Memory Speed: 667 Mhz
Memory Specification Compliance: Pc2-5300
Form Factor: Dimm 240-Pin
Configuration Features: 2 X 512 Mb
Upgrade Rule: 2 Modules At A Time
STORAGE:
Hard Drive: None.
Floppy Drive: 3.5 1.44 Mb Floppy
STORAGE CONTROLLER:
Storage Controller Type: 1 X Raid – Plug-In Card – Pci Express X8
Controller Interface Type: Serial Ata-150 / Sas
Storage Controller Name: Smart Array P400i
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size: 256 Mb
Storage Controller (2nd):
Storage Controller Type: 1 X Ide – Integrated
DISPLAY & GRAPHICS CONTROLLER:
Graphics Controller Type: Integrated
Graphics Processor: Ati Es1000
Video Memory: Sdram
Installed Size: 32 Mb
NETWORKING:
Networking: Network Adapter – Pci Express X4 – Integrated/
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller(S): 2 X Hp Nc371i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 2 Standard
Features: Wake On Lan (Wol), Dhcp Support, Acpi Support
Compliant Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DEVICE:
Power Device Type: Power Supply – Hot-Plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (With Optional Power Supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 700 Watt
