General information :
Manufacturer: hewlett-packard
Manufacturer part number: 413930-001
Product line: proliant
Product series: dl585 g2

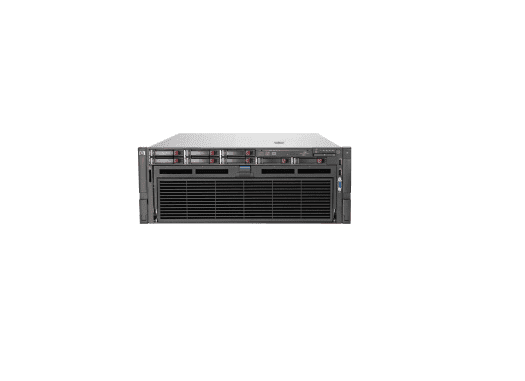

Product name: proliant dl585 g2 4u rack Mount server
Processor & chipset :
Total processors support: 4
Processor type: amd second-generation opteron 8220 / 2.8 ghz
Multi-core technology: dual-core
64-bit computing: yes
Installed qty: 4
Max supported qty: 4
Processor technology:
Amd64 technology
Hypertransport technology
Cache: 1mb l2
Cache memory:
Type: l2 cache
Installed size: 8 mb
Cache per processor: 2 mb ( 2 x 1 mb )
Memory :
Standard memory: 8gb
Maximum memory: 128gb
Memory technology: ddr2 sdram
Memory speed: 667 mhz
Memory specification compliance: pc2-5300
Signal processing: registered
Error checking: advanced ecc
Memory slots: 240-pin dimm (32 total/24 free)
Storage :
Hard drive: not included
Maximum internal storage support: 1.168tb hot-swappable sas – (8 Bays)
Optical drive: combo drive – cd-rw/dvd-rom
Storage controllers:
Storage controller type: 1 x raid – plug-in card – pci express x8
Controller interface type: serial ata-150 / sas
Storage controller name: smart array p400
Raid level: raid 0, raid 1, raid 5, raid 6, raid 10
Buffer size: 512 mb
Storage controllers(2nd):
Storage controller type: 1 x ide – integrated
Display & graphics :
Graphics controller: ati rn50 32mb ddr integrated
Network & communication :
Networking: network adapter – pci express x4 – integrated
Ethernet ports: 2 x gigabit ethernet
Ethernet controller(s): 2 x hp nc371i
Data link protocol: ethernet, fast ethernet, gigabit ethernet
Remote management controller: integrated lights-out 2
Features: wake on lan (wol), dhcp support, acpi support
Compliant standards: ieee 802.3, ieee 802.3u, ieee 802.3ab
Power description :
Device type: power supply – hot-plug
Power redundancy: yes
Power redundancy scheme: 1+1
Installed qty: 2
Max supported qty: 2
Voltage required: ac 120/230 v ( 50/60 hz )
