GENERAL INFORMATION :
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 416564-001

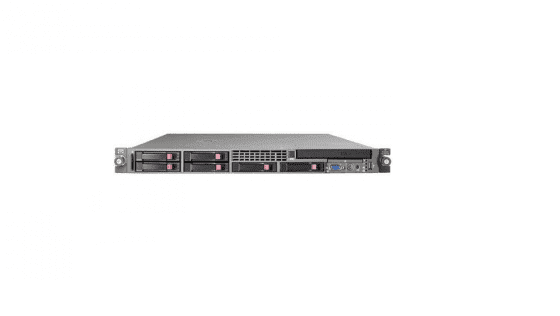

Product Name: Proliant Dl360 G5 Server – 1u Rack Mount Server (Performance Model)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon 5150/ 2.66 Ghz
Multi-Core Technology: Dual-Core
Processor Sockets Supported: Lga771
Installed Processor Qty: 2
Total Processors Support: 2
Chipset Type: Intel 5000p
Fsb: 1333 Mhz
CACHE MEMORY:
Type: L2 Cache
Installed Size: 4 Mb
Cache Per Processor: 4 Mb ( 2 X 2mb (2mb Per Core Pair) )
MEMORY :
Installed Size : 2 Gb / 64 Gb (Max)
Technology : Ddr2 Sdram – Advanced Ecc
Memory Speed : 667 Mhz
Memory Specification Compliance : Pc2-5300
Form Factor : Fb-Dimm 240-Pin
Features : Memory Mirroring, Fully Buffered, Online Spare Memory
Configuration Features : 2 X 1 Gb
Upgrade Rule : 2 Modules At A Time
STORAGE:
Hard Drive: Not Included
Optical Drive: Slimline Dvd/Cd-Rw Combo Drive
Removable Storage Drives: Not Included
STORAGE CONTROLLER:
Storage Controller Type: 1 X Raid – Plug-In Card – Pci Express X4
Controller Interface Type: Serial Ata-150 / Sas
Storage Controller Name: Smart Array P400i
Raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10
Buffer Size: 256 Mb
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
Graphics Processor: Ati Es1000
Video Memory: 32 Mb
NETWORK & COMMUNICATION :
Type : Integrated
Interface (Bus) Type : Pci Express X4
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Hp Nc373i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2 Standard
Features : Wake On Lan (Wol), Acpi Support
Compliant Standards : IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DESCRIPTION:
Device Type: Power Supply – Hot-Plug
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
