GENERAL INFORMATION :
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 417456-001

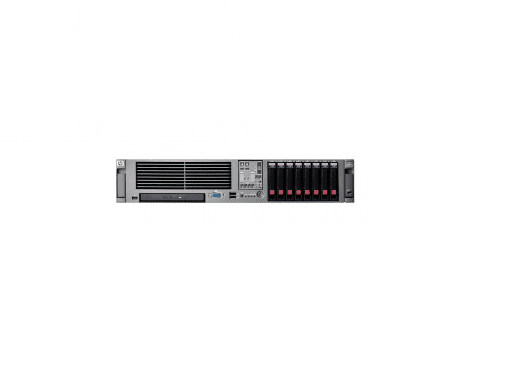

Product Name: Proliant Dl380 G5 Base Server
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon 5140/2.33ghz
Multi-Core Technology : Dual-Core
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel 5000p
Data Bus Speed : 1333 Mhz
CACHE MEMORY :
Cache Memory Type : L2 Cache
Installed Size : 4 Mb
Cache Per Processor : 4 Mb
MEMORY :
Installed Size: 2 Gb
Maximum Size: 32 Gb
Memory Technology: Ddr2 Sdram – Advanced Ecc
Memory Standard: Ddr2-667/Pc2-5300
Memory Speed: 667 Mhz
Signal Processing : Fully Buffered
Memory Slots : 240-Pin Dimm (8 DDR2 Slots)
Configuration Features: 2 X 1 Gb
STORAGE & STORAGE CONTROLLER :
Hard Drive: None
Optical Drive: None
Storage Controller (1st) Type : 1 X Raid-Plug-In Card-Pci Express X8
Controller Interface Type: Serial Ata-150 / Sas
Ultra Ata Integrated Raid Level: Raid 0,Raid 1,Raid 5,Raid 10
Buffer Size: 256 Mb
Storage Controller (2nd) Type : 1 X Ide – Integrated
Controller Interface Type : Ide/Ata
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated
Graphics Processor : Ati Es1000
Video Memory : 32 Mb Sdram
NETWORK & COMMUNICATION :
Networking: Network Adapter- Pci Express X4 – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controllers: Hp Nc373i
Data Link Protocol: Ethernet,Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 2 Standard
Features: Wake On Lan (Wol),Acpi Support
Compliant Standards: IEEE 802.3,IEEE 802.3U,IEEE 802.3AB
POWER DESCRIPTION :
Device Type : Power Supply Hot-Plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 1
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 800 Watt.
