GENERAL INFORMATION:
Type: Server

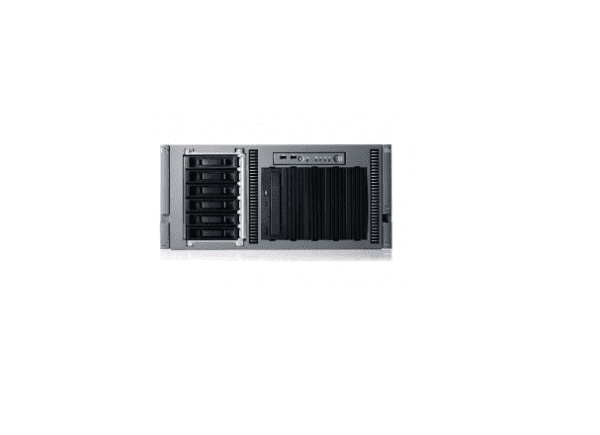

HP Proliant Ml350
Recommended Use Small business, corporate business
Product Form Factor 5U Rack mount
Server Scalability2-way
Front Accessible Bays Qty 4
Hot Swap 8 Bays
LocalizationRegion: United States
GRAPHICS CONTROLLER:
Graphics ProcessorATI ES1000
Video Memory16 MB SDRAM
Video InterfacesVGA
Hard Drive
TypeNo HDD
Manufacturer Warranty
NETWORKING:
TypeIntegrated
Interface (Bus) TypePCI Express x4
Ethernet ControllerHP NC373i
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller Integrated Lights-Out 2 Standard
Features Wake on LAN (WoL)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
OPTICAL STORAGE:
TypeCD-ROM – IDE
Read Speed48x
POWER:
Device Type Power supply – hot-plug
Power Redundancy Optional
Power Redundancy Scheme1+1 (with optional power supply)
Installed Qty1
Max Supported Qty2
Nominal Voltage AC 120/230 V (50/60 Hz)
Power Provided 1000 Watt
PROCESSOR / CHIPSET:
CPU Intel Xeon 5130 / 2 GHz
Number of Cores Dual-Core
64-bit Computing Yes
CPU Qty1
Max CPU Qty2
CPU Upgradability Upgradable
Chipset Type Intel 5000Z
Front Side Bus 1333 MHz
RAM:
Installed Size1 GB / 16 GB (max)
Technology DDR2 SDRAM – Advanced ECC
Effective Memory Speed667 MHz
Rated Memory Speed667 MHz
Memory Specification Compliance PC2-5300
Form Factor FB-DIMM 240-pin
Slots8 (total) / 6 (empty)
Features Fully buffered, Online Spare Memory
Configuration Features2 x 512 MB
STORAGE CONTROLLER:
Type1 x RAID – plug-in card – PCIe x4
Controller Interface TypeSATA 1.5Gb/s / SAS
Storage Controller Name Smart Array E200i
