GENERAL INFORMATION :
Manufacturer : Hewlett-Packard
Manufacturer Part Number : 430106-005

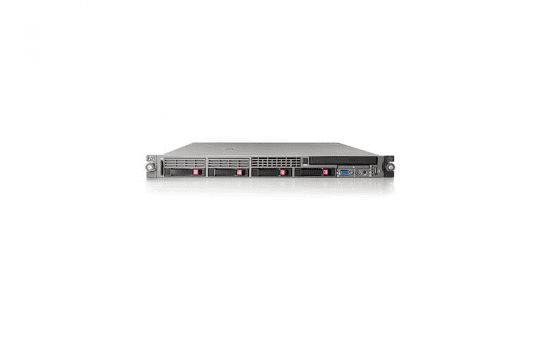

Product Name : Proliant Dl360 G5 1u Rack Mount Server (Smart Buy)
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon 5420 / 1.86 Ghz
Multi-Core Technology : Dual-Core
Processor Sockets Supported : Lga771
Installed Processor Qty : 1
Total Processor Support : 2
Bus Speed: 1066mhz
Chipset: Intel 5000p
CACHE MEMORY:
Type: L2 Cache
Installed Size: 4 MB
Cache Per Processor: 4 MB
MEMORY :
Installed Size: 2 GB / 64 GB (MAX)
Technology: Ddr2 Sdram – Advanced Ecc
Memory Speed: 533 Mhz
Memory Specification Compliance: Pc2-5300
Form Factor: Fb-Dimm 240-Pin
Features: Fully Buffered
Upgrade Rule: 2 Modules At A Time
STORAGE :
Hard Drive: None
Optical Storage Type: None
STORAGE CONTROLLER :
Storage Controller Type: 1 X Raid – Plug-In Card – Pci Express X4
Controller Interface Type: Serial Ata-150 / Sas
Storage Controller Name: Smart Array E200i
Raid Level: Raid 0, Raid 1, Raid 5
Buffer Size: 128 Mb
DISPLAY & GRAPHICS :
Type: Integrated
Graphics Processor: Ati Es1000
Video Memory: 32 Mb Sdram
NETWORK & COMMUNICATION :
Networking: Network Adapter – Pci Express X4 – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller : Hp Nc373i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Features: Wake On Lan (Wol), Acpi Support
Compliant Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DESCRIPTION :
Device Type: Power Supply – Hot-Plug
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 700 Watt
