GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 435460-B21

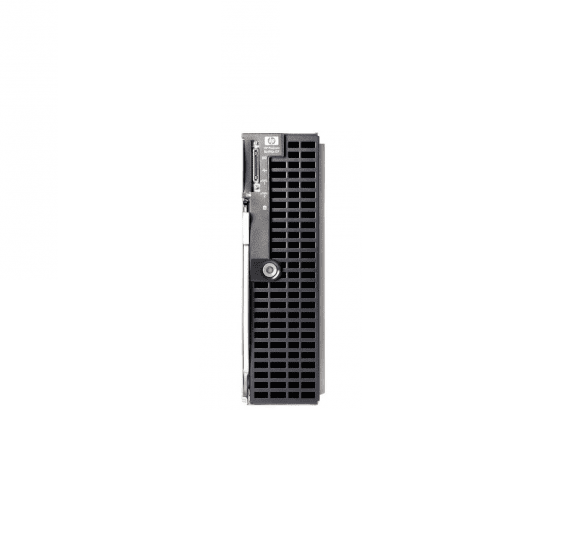

Product Name: Proliant Bl480c G1 Blade Server
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5310 / 1.6 Ghz
Multi-Core Technology: Quad-Core
64-Bit Computing: Yes
Installed Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable
Chipset Type: Intel 5000p
Data Bus Speed: 1066 Mhz
CACHE MEMORY:
Type: L2 Cache
Installed Size: 8 Mb
Cache Per Processor: 8 Mb
MEMORY:
Installed Memory: 2 Gb (2 X 1 Gb)
Maximum Memory: 48 Gb
Memory Type: Ddr2-667/Pc2-5300 Sdram
Error Checking: Advanced Ecc
Signal Processing: Fully Buffered
Memory Slots: 240-Pin Dimm (12 Total/10 Free)
STORAGE:
Hard Drive: Not Included
Hard Drive Interface: Hot Plug Serial Attach Scsi (Sas)/ Serial Ata(Sata)
Hard Drive Bays:(4) Sff Sas/Sata Drive 4 Bays
Optical Storage: Not Included
STORAGE CONTROLLERS:
Integrated Hp Smart Array P400i Controller With 256mb Cache, Raid 0/1/5, And Optional Battery-Backed Write Cache Upgrades With Raid 6
DISPLAY & GRAPHICS:
Graphics Controller: Integrated Ati Rn-50 1280 X 1024 X 16m Color (32 Mb Ddr1 Memory)
NETWORK & COMMUNICATION:
Four (4) Embedded Gigabit Ethernet Network Adapter Ports:
One (1) Embedded Nc326i Dual Port Gigabit Server Adapter
Two (2) Embedded Nc373iMultifunction Gigabit Server Adapters With Tcp/Ip Offload Engine For Microsoft Windows 2003 And Iscsi Boot For Linux
One (1) Additional Embedded 10/100 Network Adapter Dedicated To Ilo 2 Management
