General Information:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 435461-B21

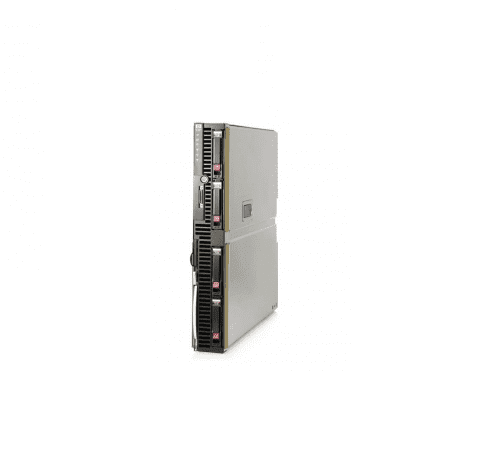

Product Name: Proliant Bl480c Blade Server
Processor & Chipset:
Processor Type: Intel Xeon E5320 / 1.86 Ghz
Multi-Core Technology: Quad-Core
64-Bit Computing: Yes
Installed Processor Qty:1
Total Processor Support: 2
Cache Memory: 2 X 4 Mb Level 2 Cache
Chipset Type: Intel 5000p
Memory:
Installed Ram Size: 2 Gb (2 X 1 Gb)
Maximum Memory: 48 Gb
Technology: Ddr2 Sdram
Memory Speed: 667 Mhz
Memory Specification Compliance: Pc2-5300
Memory Slots: 12 Dimm Slots (12 DDR2 Slots)
Storage:
Hard Drive: Not Included
Hard Drive Interface: Hot Plug Serial Attach Scsi (Sas)/ Serial Ata(Sata)
Hard Drive Bays: (4) Sff Sas/Sata Drive Bays
Optical Storage: Not Included
Storage Controllers:
Storage Controllers Type: 1 X Raid – Integrated
Storage Controller Name: Smart Array P400i
Raid Level: Raid 0, Raid 1, Raid 5
Buffer Size: 256 Mb
Display & Graphics:
Video Adapter : Integrated Ati Rn-50
Video Ram : 32 Mb Ddr1 Memory
Network & Communication:
Four (4) Embedded Gigabit Ethernet Network Adapter Ports
One (1) Embedded Nc326i Dual Port Gigabit Server Adapter
Two (2) Embedded Nc373i Multifunction Gigabit Server Adapters With Tcp/Ip Offload Engine For Microsoft Windows 2003 And Iscsi Boot For Linux
One (1) Additional Embedded 10/100 Network Adapter Dedicated To Ilo 2 Management
Expansion & Connectivity:
Expansion Bays Total (Free):
4 ( 4 ) X Hot-Swap – 2.5inch Sff (4 bays)
Expansion Slots Total (Free):
2 ( 1 ) X Processor
12 ( 10 ) X Memory – Fb-Dimm 240-Pin
2 ( 2 ) X Expansion Slot
Interfaces & Ports:
1 X Management – Hp Ilo – Rj-45
2 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45
1 X Network – Ethernet 1000base-T – Rj-45
1 X Display / Video – 15 Pin Hd D-Sub (Hd-15)
