General Information:
Manufacturer: Hewlett-Packard
Part Number: 435553-B21

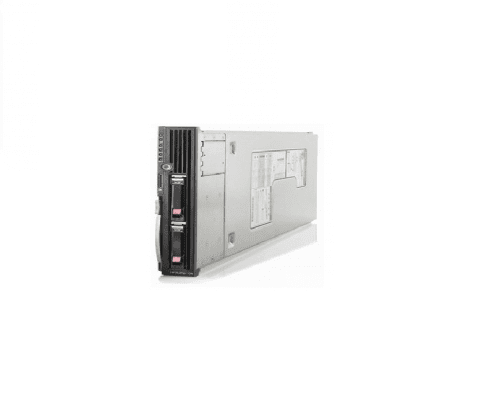

Product Name: Proliant Bl20p G4 Server
Blade Server
Processor & Chipset:
Total Processors Support: 2
Processor: 1 X Intel Xeon Quad Core 2.66ghz
Processor Number: Xeon X5350
Cache Memory:8 Mb L2 Cache
Chipset Type: Intel 5000p
Fsb: 1333 Mhz
Memory:
Standard Memory: 2gb
Maximum Memory: 32gb
Technology: Ddr2-533/Pc2-5300 Sdram
Data Integrity Check: Advanced Ecc
Form Factor: Dimm 240-Pin
Storage:
Hard Drive: Not Included
Storage Controller:
Buffer Size: 64 Mb
Controller Interface Type: Serial Attached Scsi (SAS)
Form Factor: Plug-In Card
Installed Qty: 1
Interface Type: Pci-X / 133 Mhz
Raid Level: Raid 0, Raid 1, Raid 10
Storage Controller Name: Smart Array E200i
Type: Raid
Display & Graphics:
Form Factor: Integrated
Graphics Processor Vendor: Ati Rage Xl
Installed Size: 8 Mb
Technology: Sdram
Network & Communication:
Networking: Network Adapter – Pci-X – Integrated
Ethernet Ports: 2x Gigabit Ethernet
Ethernet Controller(S): Hp Nc374i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller:
Integrated Lights-Out 2
Integrated Lights-Out Advanced Management (Asic)
Features: Wake On Lan (Wol)
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansion / Connectivity:
Expansion Bays:
2 (Total) / 2 (Free) X Hot Swap – 2.5
Expansion Slot(S):
2 (Total) / 1 (Free) X Processor
8 (Total) / 6 (Free) X Memory – Fb-Dimm 240-Pin
Interfaces:
2 X Usb – 4 Pin Usb Type A
1 X Display / Video – Vga – 15 Pin Hd D-Sub (Hd-15)
1 X Management – Hp Ilo – Rj-45
2 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45
1 X Serial – Rs-232 – 9 Pin D-Sub (Db-9)
