General Information:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 438220-B21

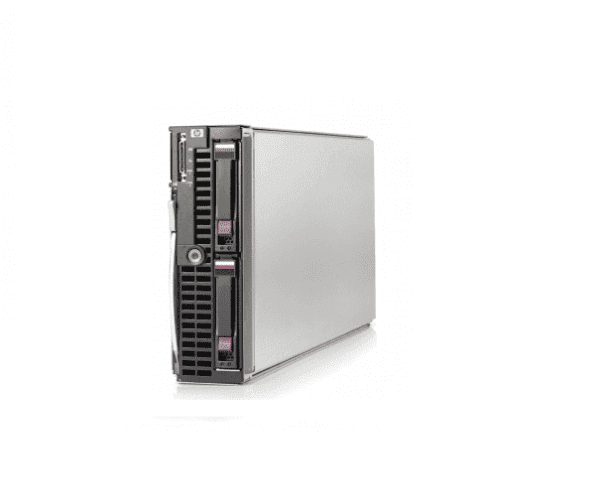

Product Name: Proliant Bl465c Blade Server
Processor & Chipset:
Processor Type: Amd Second-Generation Opteron 2220 / 2.8 GHz
Multi-Core Technology: Dual-Core
64-Bit Computing: Yes
Installed Processor Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable
Cache Memory Type: L2 Cache
Installed Cache Size: 2 Mb
Cache Per Processor: 2 Mb ( 2 X 1 Mb )
Mainboard Chipset Type: Serverworks Ht1000 / Ht2000
Memory:
Installed Ram Size: 2 Gb / 16 Gb (Max)
Technology: Ddr2 Sdram – Ecc
Memory Speed: 667 Mhz
Memory Specification Compliance: Pc2-5300
Form Factor Dimm: 240-Pin
Features: Registered
Configuration Features: 2 X 1 Gb
Upgrade Rule: 2 Modules At A Time
Storage:
Hard Drive: No Drive Included
Optical Drive: None
Storage Controller
Storage Controller Type: 1 X Raid – Integrated – Pci Express X4
Controller Interface Type: Serial Ata-150 / Sas Storage
Controller Name: Smart Array E200i
Raid Level: Raid 0, Raid 1
Buffer Size: 64 Mb
Display & Graphics:
Graphics Controller Type: Integrated
Video Memory: Ddr Sdram
Installed Size: 32 Mb
Network & Communication:
Networking: Network Adapter – Pci-X – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller(S): 2 X Hp Nc370i
Data Link Protocol: Ethernet-Fast Ethernet-Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 2
Features: Dhcp Support
Compliant Standards: Ieee 802.3-Ieee 802.3u-Ieee 802.1q-Ieee 802.3ab-Ieee 802.3x, Ieee 802.3ad (Lacp)-Ieee 802.3p
Expansion & Connectivity:
Expansion Bays Total (Free):
2 ( 2 ) X Hot-Swap – 2.5 Sff (2 Bays)
Expansion Slots Total (Free):
8 ( 6 ) X Memory – Dimm 240-Pin
2 ( 1 ) X Processor
Interfaces:
2 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45
1 X Management – Hp Ilo – Rj-45
1 X Display / Video – 15 Pin Hd D-Sub (Hd-15)
Dimensions & Weight:
Width : 7.2 In
Depth : 20.1 In
Height: 2.2 In
Weight: 14 Lbs
