GENERAL INFORMATION :
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 438815-001

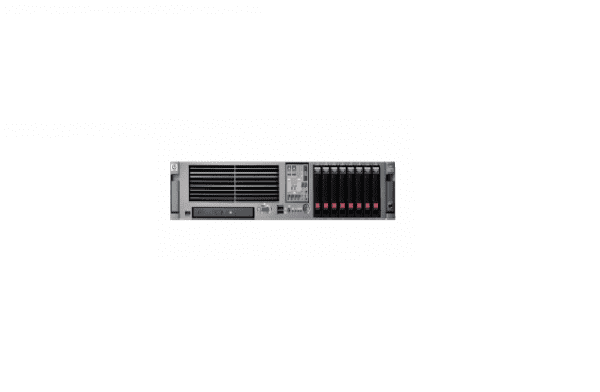

Product Name: Proliant Dl385 G2 2u Rack Mount Server (Base Model)
PROCESSOR & CHIPSET :
CPU : Amd Second-Generation Opteron 2220 / 2.8 Ghz
Number Of Cores : Dual-Core
64-Bit Computing : Yes
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Chipset Type : Serverworks Ht2100
CACHE MEMORY :
Installed Size : L2 Cache – 2 Mb
Cache Per Processor : 2 Mb ( 2 X 1 Mb )
MEMORY :
Installed Size : 2 Gb / 32 Gb (Max)
Technology : Ddr2 Sdram – Advanced Ecc
Memory Speed : 667 Mhz
Memory Specification Compliance : Pc2-5300
Form Factor : Dimm 240-Pin
Features : Fully Buffered
Configuration Features : 2 X 1 Gb
Upgrade Rule : 2 Modules At A Time
STORAGE :
Hard Drive: Not Included
Optical Drive: Not Included
Removable Storage Drives: Not Included
STORAGE CONTROLLERS :
Type : 1 X Raid – Plug-In Card – Pci Express X8
Controller Interface Type : Sata 1.5gb/S / Sas
Storage Controller Name : Smart Array P400
Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10
Buffer Size : 256 Mb
Storage Controller (2nd) :
Type : 1 X Ide – Integrated
DISPLAY & GRAPHICS :
Type : Integrated
Graphics Processor : Ati Es1000
Video Memory : 32 Mb Sdram
Video Interfaces : Vga
NETWORK & COMMUNICATION :
Type : Integrated
Interface (Bus) Type : Pci Express X4
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : 2 X Hp Nc371i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2 Standard
Features : Wake On Lan (Wol), Dhcp Support, Acpi Support
Compliant Standards : IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DESCRIPTION :
Device Type : Power Supply – Hot-Plug
Power Redundancy : Optional
Installed Qty : 1
Max Supported Qty :
Nominal Voltage : Ac 120/230 V ( 50/60 Hz )
