General Information :
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 440189-001

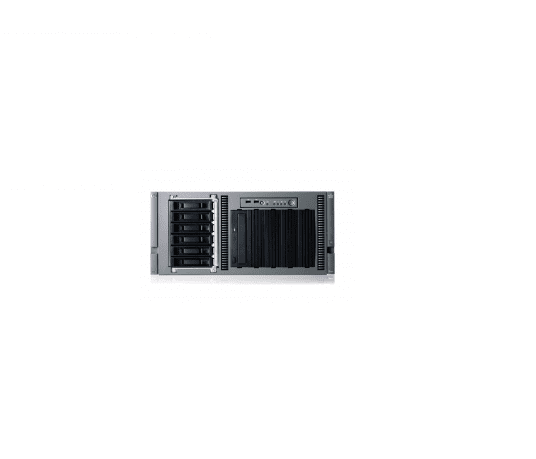

Product Name: Proliant Ml350 G5 5u Rack Mount Server (Base Model)
Processor & Chipset :
Cpu : Intel Xeon E5320 / 1.86 GHz
Number Of Cores : Quad-Core
64-Bit Computing : Yes
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Chipset Type : Intel 5000z
Front Side Bus : 1066 Mhz
Cache Memory :
Installed Size : L2 Cache – 8 Mb
Cache Per Processor : 8 Mb ( 2 X 4mb (4mb Per Core Pair) )
Memory :
Installed Size : 1 Gb / 32 Gb (Max)
Technology : Ddr2 Sdram
Memory Speed : 667 Mhz
Memory Specification Compliance : Pc2-5300
Form Factor : Fb-Dimm 240-Pin
Features : Fully Buffered
Configuration Features : 2 X 512 Mb
Storage:
Hard Drive: Not Included
Optical Drive: Dvd-Rom – Ide
Storage Controller :
Type : 1 X Raid – Plug-In Card – Pci Express X4
Controller Interface Type : Sata 1.5gb/S / Sas
Storage Controller Name : Smart Array E200i
Raid Level : Raid 0, Raid 1, Raid 10, Raid 5
Buffer Size : 128 Mb
Display & Graphics :
Type : Integrated
Graphics Processor : Ati Es1000
Video Memory : 16 Mb Sdram
Video Interfaces : Vga
Network & Communication :
Type : Integrated
Interface (Bus) Type : Pci Express X4
Ethernet Controller : Hp Nc373i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2 Standard
Features : Wake On Lan (Wol), Acpi Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansion / Connectivity :
Expansion Bays Total(Free):
4 (Total) / 3 (Free) X External 5.25 X 1/2h
8 (Total) / 8 (Free) X Hot-Swap 2.5 Sff (8 Bays)
Expansion Slots Total(Free):
3 (Total) / 3 (Free) X Pcie X8 ( X4 Mode )
2 (Total) / 2 (Free) X Pci-X / 100 Mhz
1 (Total) / 1 (Free) X Pci-X / 133 Mhz
8 (Total) / 6 (Free) X Fb-Dimm 240-Pin
2 (Total) / 1 (Free) X Cpu
Interfaces/Ports:
1 X Vga
1 X Ps/2 Keyboard
1 X Ps/2 Mouse
1 X Serial
1 X Lan (Gigabit Ethernet)
1 X Hp Ilo
6 X Usb ( 2 Front, 2 Rear, 2 Internal )
Power Description :
Device Type : Power Supply – Hot-Plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V ( 50/60 Hz )
Power Provided : 800 Watt
Dimension & Weight :
Width : 17.5 In
Depth : 21.9 In
Height : 8.5 In
Weight : 60 Lbs
