GENERAL INFORMATION :
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 440719-001

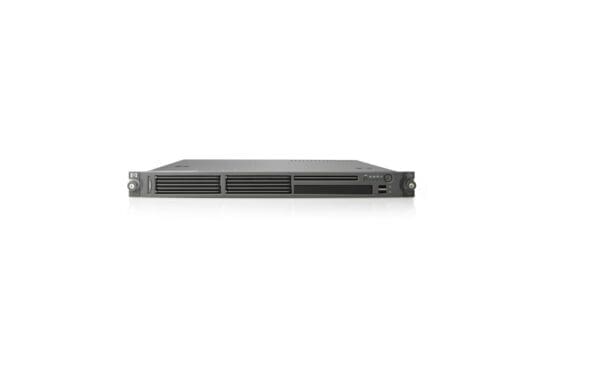

Product Name: Proliant Dl145 G3 Server
1U Rack Mount
PROCESSOR & CHIPSET:
Installed Processor: 1 X 2.8ghz Amd Second-Generation Opteron 2220
Max Supported Processor Qty: 2
Chipset Type: Serverworks Ht1000 / Ht2100
MEMORY :
Installed Memory: 4gb
Maximum Memory: 32gb
Memory Standard: Ddr2-667/Pc2-5300 Sdram
Memory Protection: Memory Mirroring With Advanced Ecc
Memory Slots: 240-Pin Dimm (8 DDR2 Slots)
STORAGE:
Hard Drive: Not Included
Optical Drive:Not Included
STORAGE CONTROLLER:
Storage Controller Type: 1 X Raid – Plug-In Card – Pci-X / 133 Mhz
Controller Interface Type: Serial Ata-150 / Sas
Channel Qty: 8
Raid Level: Raid 0, Raid 1
DISPLAY & GRAPHICS :
Graphics Controller: 32mb Shared Graphics Memory
Max Resolution (External): 1600x1200x16m
NETWORK & COMMUNICATION:
Networking: Network Adapter – Pci-X / 133 Mhz – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller(S): Hp Nc326i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol: Ipmi 2.0
Remote Management Controller: Integrated Lights Out 100i Remote Management Processor
Features: Wake On Lan (Wol), Acpi Support
Compliant Standards: Ieee 802.3
POWER DESCRIPTION:
Power Supply: 650w Non Hot-Swappable
Voltage Required: Ac 120/230 V ( 50/60 Hz )
