General information :
Manufacturer: Hewlett-Packard
Manufacturer part number: 444809-001

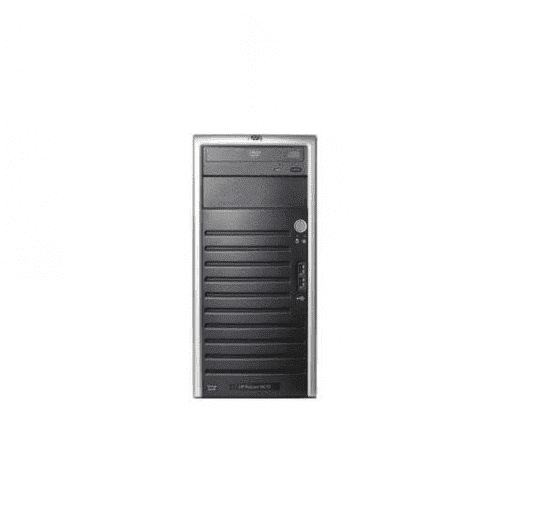

Product name: proliant ml110 g5 4u tower server
Processor & chipset :
Processor type: intel pentium e2160 / 1.8ghz
Multi-core technology: dual-core
Sockets supported : lga775
64-bit computing: yes
Installed processor qty: 1
Total processor support: 1
Processor technology:
Em64t
Enhanced speedstep technology
Cache memory: 4 mb l2 cache
Chipset type: intel 3200
Front side bus : 800 mhz
Memory :
Standard memory: 512mb
Maximum memory: 8gb
Memory technology: ddr2 sdram- ecc
Memory speed: 800 mhz
Memory speci fication compliance: pc2-6400
Form factor: dimm 240-pin
Features: unbuffered
Configuration features: 1 x 512 mb
Storage :
Hard drive : 1 x 160gb sata-150 – 7200 rpm
Optical drive : dvd-rom (serial ata)
Read speed : 48x (cd) / 16x (dvd)
Storage controller :
Storage controller type: 1 x serial ata – integrated (SATA)
Channel qty: 6
Raid level: raid 0, raid 1, raid 10
Display & graphics :
Graphics controller: 8mb integrated
Network & communication :
Networking: network adapter – pci express – integrated
Ethernet controller(s): hp nc105i
Data link protocol: ethernet, fast ethernet, gigabit ethernet
Features: wake on lan (wol)
Remote management: embedded lights out 100 ipmi 2.0 standard reporting
Expansions & connectivity :
Expansion bays total (free):
2 ( 1 ) x front accessible – 5.25in x 1/2h
4 ( 3 ) x internal – 3.5in x 1/3h
Expansion slots total (free):
1 ( 1 ) x pci express x8 – full-length, full-height
2 ( 2 ) x pci express x8 – full-height ( x1 mode )
4 ( 3 ) x memory – dimm 240-pin (4 DDR2 Slots)
1 ( 0 ) x processor – lga775 socket
Interfaces & ports :
1 x display
1 x rj-45 network
1 x 9-pin d-sub (db-9) serial
1 x 6-pin mini-din (ps/2) mouse
1 x 6-pin mini-din (ps/2) keyboard
4 x 4-pin type a usb 2.0 – usb rear
2 x 4-pin type a usb 2.0 – usb front
Power description :
Device type : power supply
Voltage required : ac 120/230 v ( 50/60 hz )
Power provided : 365 watt
