GENERAL INFORMATION :
Manufacturer : Hewlett-Packard
Manufacturer Part Number : 447966-B21

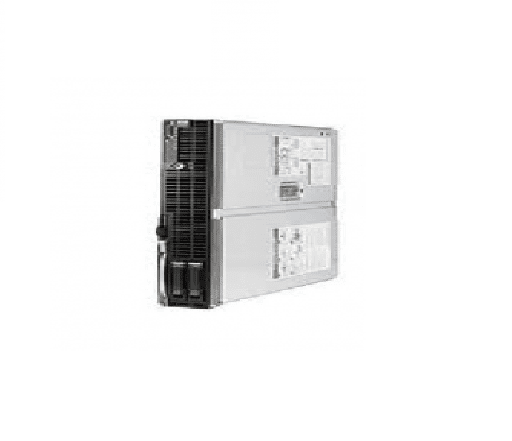

Product Name : Proliant Bl685c G5 Blade Server
PROCESSOR & CHIPSET :
Processor Type : Amd Opteron 8356 / 2.3GHz
Multi-Core Technology : Quad-Core
64-Bit Computing : Yes
Installed Qty : 2
Max Supported Qty : 4
Upgradability : Upgradable
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 4 Mb
Cache Per Processor : 2 Mb
RAM :
Installed Size : 8 Gb
Max Supported Qty : 64 Gb
Technology : Ddr2 Ram – Advanced Ecc
Memory Speed : 667 Mhz
Memory Specification Compliance : Pc2-5300
Form Factor : Dimm 240-Pin
Features : Registered
Configuration Features : 4 X 2 Gb
STORAGE & STORAGE CONTROLLER :
Hard Drive: None
Storage Controller Type : 1 X Raid – Integrated
Controller Interface Type : Serial Ata-150 / Sas
Storage Controller Name : Smart Array E200i
Raid Level : Raid 0, Raid 1, Raid 10
Buffer Size : 64 Mb
DISPLAY & GRAPHICS :
Graphics Controller Type : Integrated
Video Memory : 32 Mb
NETWORKING :
Networking : Network Adapter – Pci Express X4 – Integrated
Ethernet Ports : 4 X Gigabit Ethernet
Ethernet Controller(S) : Hp Nc326i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Features : Wake On Lan (Wol)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
I/O EXPANSIONS :
Expansion Bays Total(Free):
2 ( 2 ) X Hot-Swap – 2.5in Sff (2 Bays)
Expansion Slots Total(Free):
4 ( 2 ) X Processor
16 ( 12 ) X Memory – Dimm 240-Pin
3 ( 3 ) X Expansion Slot
INTERFACES :
1 X Management – Hp Ilo – Rj-45
4 X Network – Ethernet 1000base-T – Rj-45
1 X Display / Video – 15 Pin Hd D-Sub (Hd-15)
