General Information:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 449316-B21

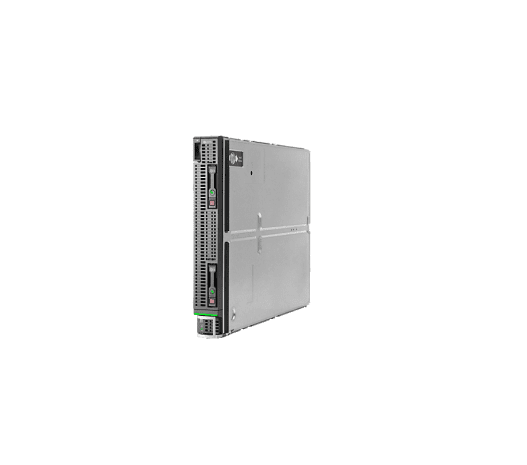

Product Name: Proliant Bl680c G5 Blade Server
Processor & Chipset:
Processor Type: Intel Xeon E7330 / 2.4 Ghz
Multi-Core Technology: Quad-Core
64-Bit Computing: Yes
Installed Qty: 2
Max Supported Qty: 2
Cache Memory:
Type: L2 Cache
Installed Size: 12 Mb
Cache Per Processor: 6 Mb
Memory:
Installed Ram Size: 8 Gb / 64 Gb (Max)
Technology: Ddr2 Sdram
Form Factor: Fb-Dimm 240-Pin
Features: Fully Buffered
Storage & Storage Controller:
Hard Drive: None.
Optical Drive: None.
Storage Controller Type: 1 X Raid – Integrated
Controller Interface Type: Serial Ata-150 / Sas
Storage Controller Name: Smart Array P400i
Raid Level: Raid 0, Raid 5, Raid 10
Buffer Size: 256 Mb
Networking:
(2) 1gbe Nc373i Multifunction 2 Ports
(1) 1gbe Nc326i 2 Ports
Ethernet Ports: 4 X Gigabit Ethernet
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Features: Wake On Lan (Wol)
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansion & Connectivity:
Expansion Bays Total (Free):
2 ( 2 ) X Hot-Swap – 2.5 Sff (2 Bays)
Expansion Slots Total (Free):
2 ( 0 ) X Processor
16 ( 12 ) X Memory – Fb-Dimm 240-Pin
3 ( 3 ) X Expansion Slot
Interfaces:
1 X Management – Hp Ilo – Rj-45
4 X Network – Rj-45
1 X Display / Video – 15 Pin Hd D-Sub (Hd-15)
Dimensions & Weight:
Width : 2 In
Depth : 20 In
Height: 14.4 In
Weight: 20 Lbs
