General Information:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 449768-001

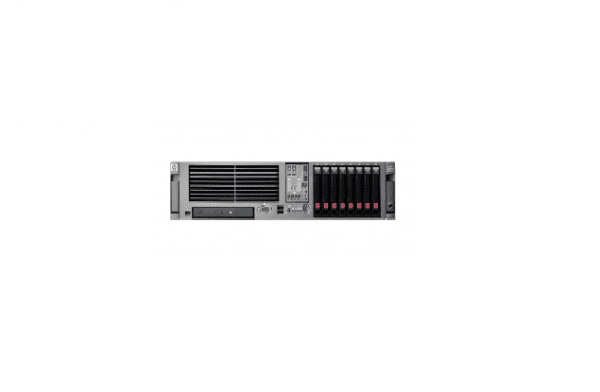

Product Name: Proliant Dl385 G5 – 2u Rack Mount Server (Base Model)
Processor & Chipset :
Cpu : Amd Third-Generation Opteron 2352 / 2.1 GHz
Number Of Cores : Quad-Core
64-Bit Computing : Yes
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Cache Memory :
Installed Size : L3 Cache – 2 Mb
Cache Per Processor : 2 Mb
Memory :
Installed Size : 2 Gb / 32 Gb (Max)
Technology : Ddr2 Sdram – Advanced Ecc
Memory Speed : 667 Mhz
Memory Specification Compliance : Pc2-5300
Form Factor : Dimm 240-Pin
Configuration Features : 2 X 1 Gb
Storage :
Hard Drive: None
Optical Drive: Non
Storage Controller :
Type: 1 X Raid – Plug-In Card – Pci Express X8
Controller Interface Type: Serial Ata-150 / Sas
Storage Controller Name: Smart Array P400
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size: 256 Mb
Display & Graphics:
Graphics Controller Type: Integrated
Graphics Processor: Ati Es1000
Video Memory: 32 Mb
Network & Communication :
Type : Integrated
Interface (Bus) Type : Pci Express X4
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : 2 X Hp Nc373i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2 Standard
Features : Wake On Lan (Wol), Dhcp Support, Acpi Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansion / Connectivity :
Expansion Bays Total (Free):
8 (Total) / 8 (Free) X Hot-Swap 2.5 Sff (8 Bays)
1 (Total) / 1 (Free) X External
Expansion Slots Total (Free):
2 (Total) / 2 (Free) X Pcie X16 ( X8 Mode )
2 (Total) / 1 (Free) X Pcie X8
1 (Total) / 1 (Free) X Pcie X8 ( X4 Mode )
2 (Total) / 1 (Free) X Cpu
8 (Total) / 6 (Free) X Dimm 240-Pin
