GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 451993-001

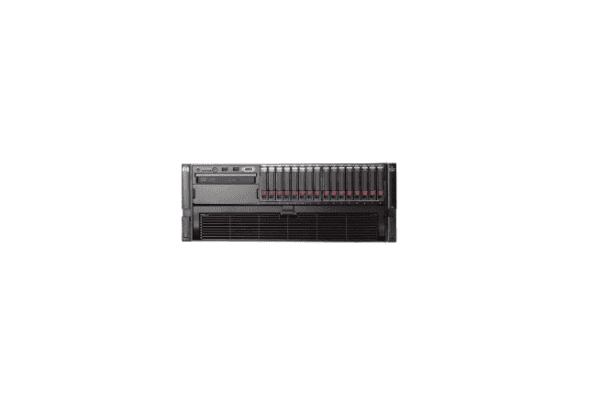

Product Name: Proliant Dl580 G5 – 4u Rack Mount Server(High Performance Model)
PROCESSOR & CHIPSET:
Installed Processor: 4x Intel Xeon X7350 Quad-Core 2.93ghz
Max Supported Qty: 4
Cache Memory: 2 X 4mb L2 Cache
Fsb: 1066 Mhz
Chipset: Intel 7300 Chipset
CACHE MEMORY TYPE:
Installed Size: L2 Cache – 32 Mb
Cache Per Processor: 8 Mb ( 2 X 4mb (4mb Per Core Pair)
RAM:
Installed Size: 8 Gb
Configuration Features: 4 X 2 Gb
Max Supported Size: 256 Gb
Technology: Ddr2-667/ Pc2-5300 Sdram
Memory Protection: Advanced Ecc, Memory Mirroring, Online Spare Memory
Form Factor: Fb-Dimm
STORAGE:
Hard Drive: Not Included
Hard Drive Interface: Sas Or Serial Ata (Sata) Drives
Hard Drive Bays: Support For Up To 16 Small Form-Factor (Sff) Sas Or Serial (16 Bays)
Ata (Sata) Drives
Optical Storage: Dvd-Rom – Slimline Drive
STORAGE CONTROLLER:
Type: Embedded Hp Smart Array P400i /512mb Bbwc
Raid Support: Raid 0, 1, 1+0, 5 And Raid 6 With Adg
DISPLAY & GRAPHICS:
Graphics : Integrated Ati Es1000 With 32mb Embedded Video Sdram
Max Resolution: 1280 X 1024 X 16m Color
NETWORKING & COMMUNICATION:
Network Card: Dual Embedded Nc373i Multi-Function Gigabit Ethernet Network Adapters
Management: Integrated Lights Out 2 (Ilo 2) Standard Management
