General Information:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 454894-B21

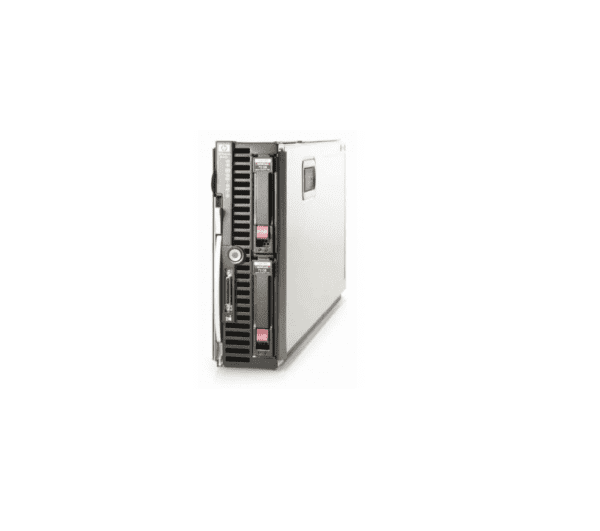

Product Name: Proliant Bl465c Blade Server
Processor & Chipset:
Processor Type: Amd Second-Generation Opteron 2222 / 3 Ghz
Multi-Core Technology: Dual-Core
64-Bit Computing: Yes
Installed Processor: 1
Max Supported Qty: 2
Processor Number: 2222
Chipset Type: Serverworks Ht1000 / Ht2000
Cache Memory:
Type: L2 Cache
Installed Size: 2 Mb
Cache Per Processor: 2 Mb
Memory:
Installed Ram Size: 2 Gb
Max Supported Size: 32 Gb
Type: Pc2-5300 Ddr2 Dimms (667 Mhz)
Feature: Registered
Memory Protection : Advanced Ecc
Form Factor:: Dimm 240-Pin
Upgrade Rule: 2 Modules At A Time
Storage:
Hard Drive: No Driver Included
Optical Drive: None
Storage Controller:
Raid Controller:Integrated Smart Array E200i Controller With 64mb (Optional Battery-Backed Write Cache)
Storage Controller Type: 1 X Raid – Integrated – Pci Express X4
Controller Interface Type: Serial Ata-150 / Sas
Storage Controller Name: Smart Array E200i
Raid Level: Raid 0, Raid 1
Buffer Size: 64 Mb
Raid Level: Raid 0, Raid 1
Display & Graphics:
Graphics: Integrated Ati Rn-50 1280 X 1024 X 16m Color (32 Mb Ddr1 Memory)
Network & Communication:
Two (2) Embedded Nc370i Multifunction Gigabit Server Adapters With Tcp/Ip Offload Engine For
Microsoft Windows
One (1) Additional 10/100 Server Adapter Dedicated To Ilo 2 Management
Networking: Network Adapter – Pci-X – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller(S): 2 X Hp Nc370i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 2
Features: Dhcp Support
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.3p
I/O Expansions:
Expansion Bays:
2(2) Hot-Swap 2.5 Sff (2 Bays)
Expansion Slots:
2 I/O Expansion Mezzanine Slots (One X8 And One X4 Pci Express)
2 (1) Processor Slot
8 (6) Memory Slot – Dimm 240 Pin
I/O Ports:
1 X Management – Hp Ilo – Rj-45
2 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45
1 X Display / Video – 15 Pin Hd D-Sub (Hd-15)
Dimensions & Weight:
Width : 7.2 In
Depth : 20.1 In
Height: 2.2 In
Weight: 14 Lbs
