GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 457925-001

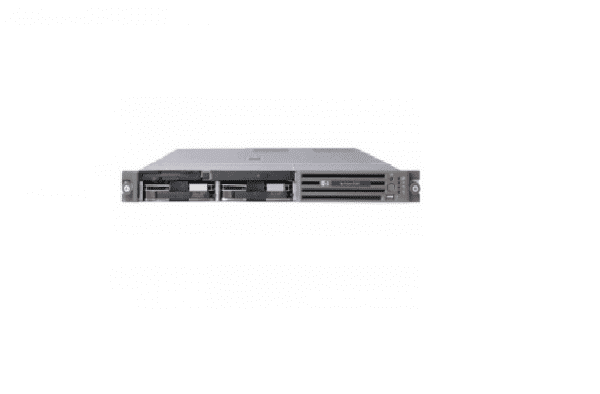

Product Name: Proliant Dl360 G5 – 1u Rack Mount Server (Base Model)
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5420 / 2.5 Ghz
Multi-Core Technology: Quad-Core
64-Bit Computing: Yes
Installed Processor: 1
Total Processor Support: 2
Chipset: Intel 5000p
CACHE MEMORY:
Type: L2 Cache
Installed Size: 12 Mb
Cache Per Processor: 12 Mb
MEMORY:
Installed Ram Size: 2 Gb / 32 Gb (Max)
Technology: Ddr2 Sdram – Advanced Ecc
Memory Speed: 667 Mhz
Memory Specification Compliance: Pc2-5300
Form Factor: Fb-Dimm 240-Pin
Features: Memory Mirroring, Fully Buffered, Online Spare Memory
Configuration Features: 2 X 1 Gb
Memory Slots: 240-Pin Dimm (8 DDR2 Slots)
STORAGE:
Hard Drive: Not Included
Hard Drive Interface: Serial Ata-150 / Sas
Hard Drive Bays: Up To Six Sas/Sata Hot Plug Drive Bays, (4) Drive 6 Bays Active
Optical Drive: Not Included
Removable Storage Drives: Not Included
STORAGE CONTROLLERS:
Storage Controllers Type: 1 X Raid – Plug-In Card – Pci Express X4
Controller Interface Type: Serial Ata-150 / Sas
Storage Controller Name: Smart Array P400i
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size: 256 Mb
DISPLAY & GRAPHICS:
Type: Integrated
Graphics Processor: Ati Es1000
Video Memory: 32 Mb
NETWORK & COMMUNICATION:
Networking: Network Adapter – Pci Express X4 – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller(S): Hp Nc373i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 2 Standard
Features: Wake On Lan (Wol), Acpi Support
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
POWER DESCRIPTION:
Device Type: Power Supply – Hot-Plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (With Optional Power Supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 700 Watt
