GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 458237-001

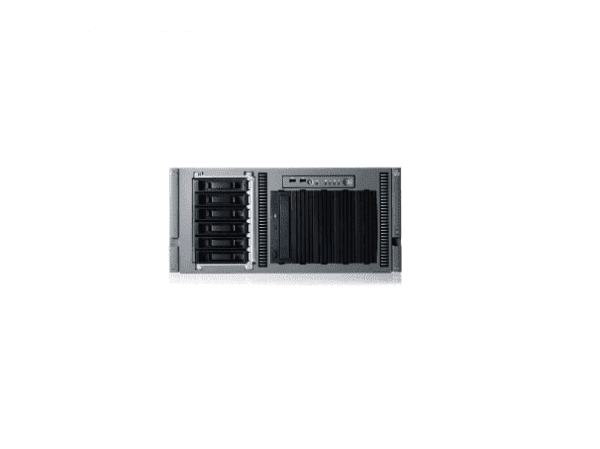

Product Name: Proliant Ml350 G5 – 5u Rack mount Server
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5430 / 2.66 Ghz
Multi-Core Technology: Quad-Core
64-Bit Computing: Yes
Installed Processor Qty: 1
Total Processors Support: 2
Processor Technology: Em64t
Fsb: 1333mhz
Cache: 12mb (2 X 6mb) Level 2 Cache
Chipset: Intel 5000z
Data Bus Speed: 1333 Mhz
CACHE MEMORY:
Type: L2 Cache
Installed Size: 12 Mb
Cache Per Processor: 6 Mb
MEMORY:
Installed Memory: 2 Gb (2 X 1gb)
Maximum Memory: 32 Gb (8 X 4 Gb)
Technology: Ddr2 Sdram – Advanced Ecc
Memory Speed: 667 Mhz
Memory Specification Compliance: Pc2-5300
Feature: Fully Buffered
Memory Protection: Online Spare, Advanced Ecc
Memory Slots: 240-Pin Dimm (8 DDR2 Slots)
STORAGE:
Hard Drive: Not Included.
Hard Drive Interface: Hot Plug Serial Ata (Sata)/ Serial Attached Sci (Sas) (SATA/SAS)
Drive Bays: 8 Sff (2.5inch) Sas Or Sata Hot Plug Drive 8 Bays
Optical Drive: 16x Dvd-Rom Drive
STORAGE CONTROLLER:
Storage Controller Type: 1 X Raid – Plug-In Card – Pci Express X4
Controller Interface Type: Serial Ata-150 / Sas
Storage Controller Name: Smart Array E200i
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size: 128 Mb
Storage Controller (2nd):
Storage Controller Type: 1 X Ide – Integrated
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
Graphics Processor: Ati Es1000
Video Memory: 16 Mb Sdram
16 Bit Color: Maximum Resolution Of 1600 X 1200
32 Bit Color: Maximum Resolution Of 1280 X 1024
Note: Maximum Resolution Available Via Ilo 2 Remote Console Is 1280 X 1024.
NETWORK & COMMUNICATION:
Embedded Nc373i Multifunction Gigabit Server Adapter
Networking: Network Adapter – Pci Express X4 – Integrated
Ethernet Controller(S): Hp Nc373i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management: Integrated Lights-Out 2 (Ilo2) Standard Management
Features: Wake On Lan (Wol)
