GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 458243-001

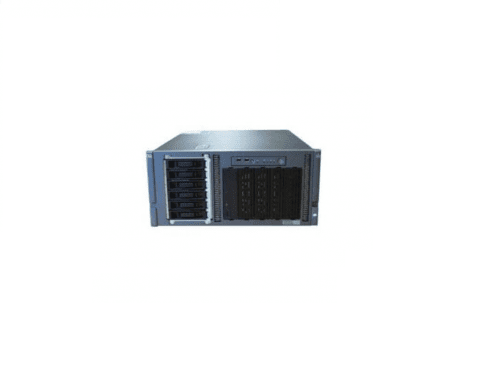

Product Name: Proliant Ml350 G5 – 5u Rack Mount Server (Base Model)
PROCESSOR & CHIPSET:
Processor Type : Intel Xeon Quad-Core Xeon E5420 / 2.50GHz
Multi-Core Technology: Quad-Core
64-Bit Computing: Yes
Installed Processor Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable
Chipset Type: Intel 5000z
Dat Bus Speed: 1333 MHZ
CCHE MEMORY:
Type: L2 Cache
Installed Size: 12 MB
Cache Per Processor: 6 MB
MEMORY:
Installed Ram Size: 1 GB
Maximum Memory: 32 GB (8 X 4 GB)
Technology: Ddr2 Sdram – Advanced Ecc
Memory Speed: 667 Mhz
Memory Specification Compliance: Pc2-5300
Form Factor: Fb-Dimm 240-Pin
Features: Fully Buffered, Online Spare Memory
Configuration Features: 2 X 1 Gb
Memory Slots: 240-Pin Dimm (8 DDR2 Slots)
STORAGE:
Hard Drive: None.
Hard Drive Interface: Hot Plug Serial Ata (Sata)/ Serial Attached Scsi (Sas)
Drive Bays: 8 Sff (2.5inch) Sas Or Sata Hot Plug Drive 8 Bays
Optical Storage Type: Dvd-Rom – Ide
Read Speed: 16x
STORAGE CONTROLLERS:
Storage Controllers Type: 1 X Raid – Plug-In Card – Pci Express X4
Controller Interface Type: Serial Ata-150 / Sas
Storage Controller Name: Smart Array E200i / 128 Bbwc Controller
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size: 128 MB
STORAGE CONTROLLER (2ND):
Storage Controllers Type: 1 X Ide – Integrated
DISPLAY & GRAPHICS:
Graphics Controller Type: Integrated
Graphics Processor: Ati Es1000
Video Memory: 16 Mb Sdram
NETWORKING:
Networking: Network Adapter – Pci Express X4 – Integrated
Ethernet Controller(S): Hp Nc373i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 2 Standard
Features: Wake On Lan (Wol)
Compliant Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
EXPANSION & CONNECTIVITY:
Expansion Bays Total (Free):
4 ( 3 ) X Front Accessible – 5.25 X 1/2h
8 ( 8 ) X Hot-Swap – 2.5 Sff
Expansion Slots Total (Free):
3 ( 3 ) X Pci Express X8 ( X4 Mode )
2 ( 2 ) X Pci-X / 100 Mhz
1 ( 1 ) X Pci-X / 133 Mhz
8 ( 6 ) X Memory – Fb-Dimm 240-Pin
2 ( 1 ) X Processor
