GENERAL INFORMATION :
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 458344-001

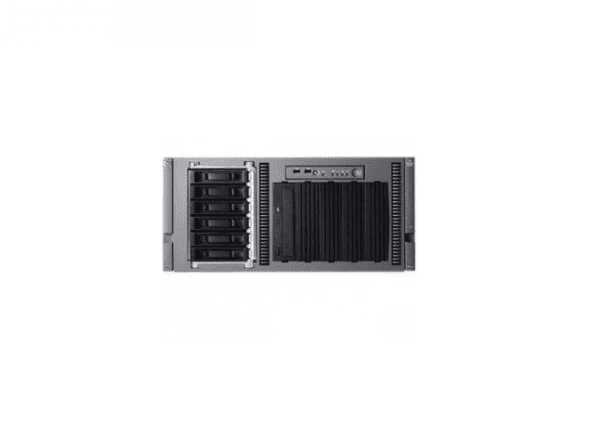

Product Name: Proliant Ml370 G5 5u Rack Mount Server
PROCESSOR & CHIPSET :
Processor Type: Intel Xeon E5440 / 2.83 GHz
Multi-Core Technology: Quad-Core
Installed Cpu Qty: 1
Max Supported Qty: 2
Fsb Speed: 1333 Mhz
Sockets Supported: Lga771
Upgradability: Upgradable
Chipset Type: Intel 5000p
CACHE MEMORY :
Type: L2 Cache
Installed Size: 12 Mb
Cache Per Processor: 12 Mb ( 2 X 6mb (6mb Per Core Pair) )
MEMORY :
Installed Size : 2 Gb / 64 Gb (Max)
Technology : Ddr2 Sdram – Advanced Ecc
Memory Speed : 533 Mhz
Memory Specification Compliance : Pc2-5300
Form Factor : Fb-Dimm 240-Pin
Features : Buffered, Fully Buffered
Configuration Features : 2 X 1 Gb
STORAGE :
Hard Drive: None
Optical Storage: 48x – Cd-Rom – Ide
STORAGE CONTROLLER :
Type : 1 X Raid – Plug-In Card – Pci Express X8
Controller Interface Type : Sata 1.5gb/S / Sas
Storage Controller Name : Smart Array P400
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size : 256 Mb
GRAPHICS CONTROLLER :
Type : Integrated
Graphics Processor : Ati Es1000
Video Memory : 32 Mb Sdram
Video Interfaces : Vga
NETWORK & COMMUNICATION :
Type : Integrated
Interface (Bus) Type : Pci Express X4
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : 2 X Hp Nc373i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2 Standard
Features : Wake On Lan (Wol)
