GENERAL INFORMATION :
Manufacturer : Dell
Manufacturer Part Number : 463-6106

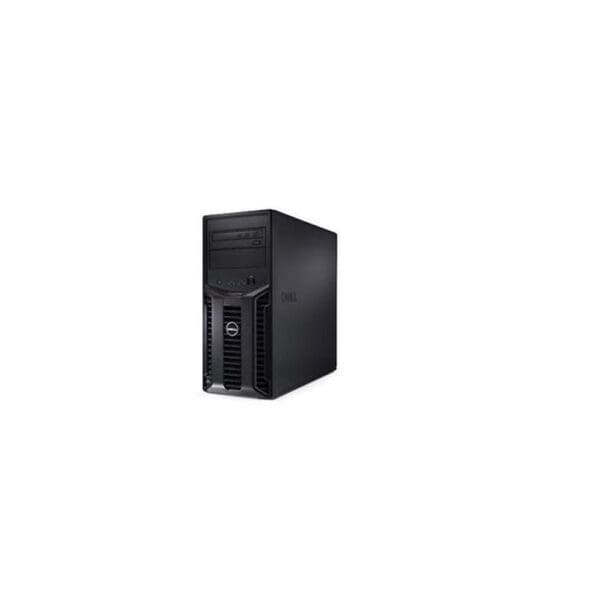

Product Name: Poweredge T430 – 5U Tower Server
PROCESSOR & CHIPSET :
CPU : Intel Xeon E5-2630V3 / 2.4 GHz
Max Turbo Speed : 3.2 GHz
Number Of Cores : 8-Core
Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Processor Main Features : Intel Turbo Boost Technology 2
Chipset Type : Intel C610
CACHE MEMORY :
Cache Memory Type : Smart Cache
Installed Size : 20 MB
Cache Per Processor : 20 MB
MEMORY :
Installed Size : 8 GB / 384 GB (MAX)
Technology : DDR4 SDRAM
Memory Speed : 2133 MHz
Form Factor : DIMM 288-Pin
Memory Slots: 12 x DDR4 RAM Slots
Features : Registered
Configuration Features : 1 X 8 GB
STORAGE:
Hard drive :
Type : Hdd – Hot Swap
Capacity : 1 X 300 GB
Interface Type : SAS 6GB/S
Spindle Speed : 10000 RPM
Optical Storage
TYPE : DVD-ROM – SATA
STORAGE CONTROLLERS:
Type : 1 X Raid
Controller Interface Type : SAS 12GB/S
Storage Controller Name : Dell Perc H730
RAID LEVEL : RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
Buffer Size : 1 GB
DISPLAY & GRAPHICS CONTROLLERS :
Type : Integrated
Graphics Processor : Matrox G200
Video Memory : 16 MB
Video Interfaces : VGA
NETWORK & COMMUNICATION:
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Broadcom BCM5720
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : IPMI 2.0
Remote Management Controller : Integrated Dell Remote Access Controller 8 (Idrac8)
POWER DESCRIPTION :
Device Type : Power Supply – Hot-Plug
Power Redundancy : Optional
Power Redundancy Scheme : 1+1 (With Optional Power Supply)
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : AC 120/230 V ( 50/60 HZ )
Power Provided : 495 WATT
EXPANSION/ CONNECTIVITY :
Expansion bays total (free) :
16 (TOTAL) / 15 (FREE) X HOT-SWAP 2.5
1 (TOTAL) / 0 (FREE) X EXTERNAL 5.25
EXPANSION SLOTS TOTAL (FREE) :
1 Pcie 2.0 X4 – Half-Length, Full-Height
1 Pcie 2.0 X1 – Half-Lengt, Full-Height
2 Pcie 3.0 X16 – Full-Length, Full-Height
2 Pcie 3.0 X8 – Half-Length, Full-Height
2 (Total) / 1 (Free) X Cpu
12 (Total) / 11 (Free) X Dimm 240-Pin
INTERFACES & PORTS :
6 X USB 2.0 ( 1 Front, 5 Rear )
2 X Lan (Gigabit Ethernet)
1 X Management (Nic)
2 X VGA ( 1 FRONT, 1 REAR )
1 X SERIAL ¦ 2 X USB 3.0 ( 1 FRONT, 1 REAR )
