General Information:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 464943-B21

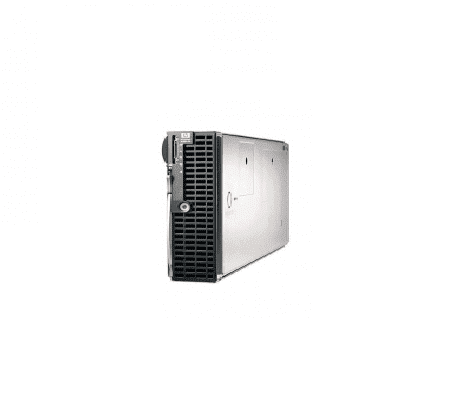

Product Name: Proliant Bl260c G5 – Blade Server
Processor & Chipset:
Processor Type: Intel Xeon E5420 / 2.5 Ghz
Number Of Cores : Quad-Core
64-Bit Computing: Yes
Installed Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable
Data Bus Speed: 1333 Mhz
Chipset Type: Intel 5100
Cache Memory:
Cache Memory Type: L2 Cache
Installed Size: 12 Mb
Memory:
Installed Size Ram: 2 Gb / 48 Gb (Max)
Technology: Ddr2 Sdram
Memory Speed: 667 Mhz
Memory Specification Compliance: Pc2-5300
Form Factor: Dimm 240-Pin
6 DDR2 Slots
Storage:
Hard Drive : None
Storage Controller:
Storage Controller Type: Hp Embedded G5 Sata Raid Controller
Display & Graphics Controller:
Graphics Controller Type: Integrated Ati Rn-50
Video Memory: 32 Mb
Networking:
Type : Integrated
Interface (Bus) Type : Pci Express X4
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Hp Nc326i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Features : Wake On Lan (Wol)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansion & Connectivity:
Expansion Bays Total (Free): 2 Bays
2 ( 2 ) X Hot-Swap – 2.5 Sff
Expansion Slots Total (Free):
2 ( 1 ) X Processor
6 ( 4 ) X Memory – Dimm 240-Pin
1 ( 1 ) X Expansion Slot ( X8 Mode )
1 ( 1 ) X Expansion Slot ( X4 Mode )
Interfaces:
1 X Management – Hp Ilo – Rj-45
2 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45
1 X Display / Video – 15 Pin Hd D-Sub (Hd-15)
