GENERAL INFORMATION :
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 470063-702

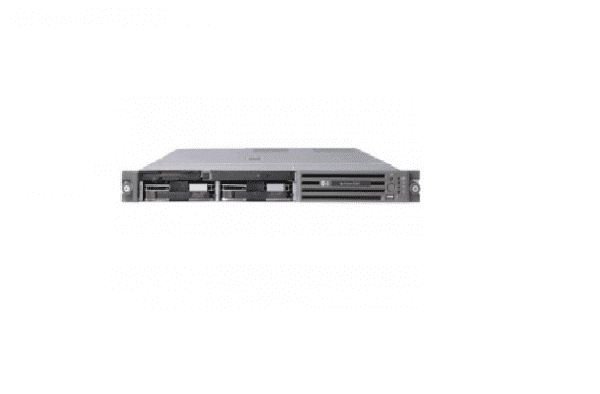

Product Name: Proliant Dl360 G4 Rack Server
1U Rack Mount Server
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon 3.0GHz
Installed Qty : 1
Max Supported Qty : 2
64-Bit Computing: Yes
Upgradability: Upgradable
Processor Main Features:
Hyper-Threading Technology
Intel Extended Memory 64 Technology
Chipset Type : Intel E7520
Data Bus Speed : 800 Mhz
CACHE MEMORY :
Cache Memory Type : L2 Cache
Installed Size : 2 Mb
Cache Per Processor : 2 Mb
MEMORY :
Installed Size: 2 Gb
Maximum Size: 12 Gb
Memory Type: Ddr2 Sdram-Advanced Ecc
Ram Form Factor: Dimm 240-Pin
Ram Features: Registered
STORAGE :
Hard Drive : None
Floppy Drive : 3.5in 1.44 Mb Floppy
Optical Drive : Cd-Rom – Ide
Read Speed : 24x
STORAGE CONTROLLERS :
Storage Controller (1st) : 1 X Raid – Integrated
Controller Interface Type: Ultra320 Scsi
Storage Controller Name: Smart Array 6i Controller
Channel Qty: 1
Raid Level: Raid 0, Raid 1, Raid 5, Raid 0+1
Buffer Size: 64 Mb
Storage Controller (2nd) : 1 X Ide – Integrated
Controller Interface Type: Ide/Ata
DISPLAY & GRAPHICS :
Graphics Controller Type: Integrated
Graphics Processor: Ati Rage Xl
Video Memory: 8 Mb Sdram
NETWORK & COMMUNICATION :
Networking: Network Adapter – Pci-X / 66 Mhz – Integrated
Ethernet Controller(S): Nc7782
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Remote Management: 1 X Hp Ilo Remote Management
EXPANSIONS & CONNECTIVITY :
Expansion Bays Total (Free):
1 ( 0 ) X Front Accessible-5.25in X 1/6h (Slim Line)
1 ( 0 ) X Front Accessible-3.5in Slim Line
2 ( 2 ) X Hot-Swap-3.5in X 1/3h (2 Bays)
EXPANSION SLOTS TOTAL (FREE):
1 ( 1 ) X Pci-X/133 Mhz-Full-Length
1 ( 1 ) X Pci-X/133 Mhz-Half-Length
