GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 470064-553

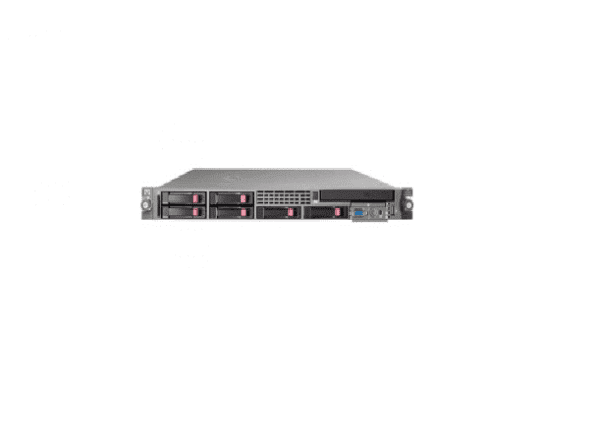

Product Name: Proliant DL360 Server Smart Buy
1U Rack Mount
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5345 / 2.33 Ghz
Multi-Core Technology: Quad-Core
64-Bit Computing: Yes
Installed Processor Qty: 2
Total Processor Support: 2
Processor Technology: Em64t
Virtualization Technology
Bus Speed: 1333mhz
Cache: 12mb L2
Chipset: Intel 5000p
CACHE MEMORY:
Type: L2 Cache
Installed Size: 16 Mb
Cache Per Processor: 8 Mb ( 2 X 4mb (4mb Per Core Pair) )
MEMORY:
Installed Size / Max: 4 Gb (2 X 2gb)/ 32gb
Technology: Ddr2 Sdram – Advanced Ecc
Memory Speed: 667 Mhz
Memory Specification Compliance: Pc2-5300
Feature: Fully Buffered
Memory Protection: Advanced Ecc, Online Spare, Mirroring
Memory Slots: 240-Pin Dimm (8 DDR2 Slots)
STORAGE:
Hard Drive: Not Included
Hard Drive Interface: Serial Ata-150 / Sas
Hard Drive Bays: Up To Six Sas/Sata Hot Plug Drive Bays, 4 Active Drive Bays (Total 6 Bays)
Optical Drive: Slimline Cd-Rw/Dvd-Rom Combo
Removable Storage Drives: Not Included
STORAGE CONTROLLERS:
Hp Smart Array E200i 64mb Serial Attached Scsi Pci Express X4 Raid Controller Supporting 0, 1, 1+0 Raid Level(S)
Type: 1 X Raid – Plug-In Card – Pci Express X4
Controller Interface Type: Serial Ata-150 / Sas
Storage Controller Name: Smart Array P400i
Raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10
Buffer Size: 256 Mb
DISPLAY & GRAPHICS:
Type: Integrated
Graphics Processor: Ati Es1000
Video Memory: 32 Mb
NETWORK & COMMUNICATION:
Networking: Network Adapter – Pci Express X4 – Integrated
Nic: 2 X Embedded Nc373i Multifunction Gigabit Network Adapters
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller(S): Hp Nc373i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 2 Standard
Features: Wake On Lan (Wol), Acpi Support
Compliant Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
Remote Management: 1 X Hp Ilo Remote Management
POWER DESCRIPTION:
Device Type: Power Supply – Hot-Plug
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 700 Watt
