GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 470064-873

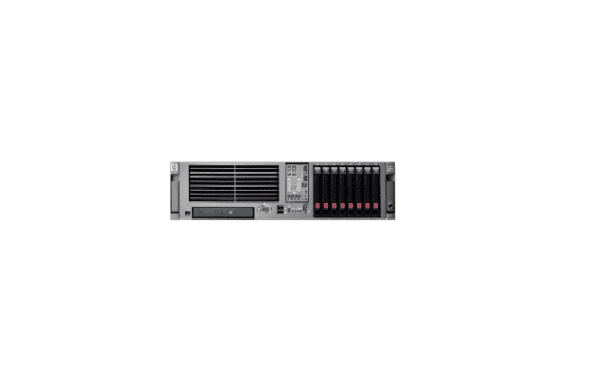

Product Name : Proliant- Dl380 G5 2u Rack Mount Server
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5430 / 2.66 Ghz
Multi-Core Technology : Quad-Core
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel 5000p
Data Bus Speed : 1333 Mhz
CACHE MEMORY :
Cache Memory Type : L2 Cache
Installed Size : 12 Mb
Cache Per Processor : 12 Mb ( 2 X 6mb (6mb Per Core Pair) )
MEMORY :
Installed Size : 2 Gb
Maximum Size : 64 Gb
Technology : Ddr2 Sdram – Advanced Ecc
Memory Speed : 667 Mhz
Memory Specification Compliance : Pc2-5300
Form Factor : Fb-Dimm 240-Pin
Features : Memory Mirroring, Fully Buffered, Online Spare Memory
Configuration Features : 2 X 1 Gb
STORAGE & STORAGE CONTROLLER :
Hard Drive : None
Optical Storage Type : Cd-Rw / Dvd-Rom Combo – Ide
Storage Controller (1st) Type : : 1 X Raid – Plug-In Card – Pci Express X8
Controller Interface Type : Serial Ata-150 / Sas
Storage Controller Name : Smart Array P400
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size : 256 Mb
Storage Controller (2nd) Type : 1 X Ide – Integrated
Controller Interface Type : Ide/Ata
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Graphics Processor : Ati Es1000
Video Memory : 32 Mb Sdram
NETWORK & COMMUNICATION :
Networking : Network Adapter – Pci Express X4 – Integrated
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller(S) : Hp Nc373i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2 Standard
Features : Wake On Lan (Wol), Acpi Support
Compliant Standards : IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DEVICE :
Device Type : Power Supply – Hot-Plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 1000 Watt
