GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 487381-B21

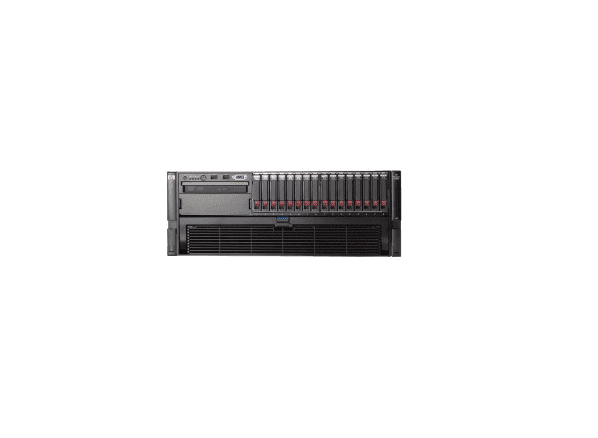

Product Name: Proliant Dl580 G5 – 4u Rack Mount Server (Cto Chassis)
PROCESSOR & CHIPSET:
Installed Processor: No Cpu
Max Supported Qty: Up To Four Intel Xeon 7400 Series Processors
MEMORY:
Installed Ram Size: 0MB
Max Supported Size: 256 GB
Technology: Ddr2-667/ Pc2-5300 Sdram
Memory Protection: Advanced Ecc, Memory Mirroring, Online Spare Memory
Form Factor: Fb-Dimm
STORAGE:
Hard Drive: Not Included
Hard Drive Interface: Sas Or Serial Ata (Sata) Drives
Hard Drive Bays: Support For Up To 16 Small Form-Factor (Sff) Sas Or Serial 16 Bays
Ata (Sata) Drives
Optical Storage: Not Included
STORAGE CONTROLLER:
Storage Controller Type: 1 X Raid – Integrated
Controller Interface Type: Serial Ata-150 / Sas
Storage Controller Name: Smart Array P400i
Raid Level: Raid 0, Raid 5, Raid 10
DISPLAY & GRAPHICS:
Graphics : Integrated Ati Es1000 With 32mb Embedded Video Sdram
Max Resolution: 1280 X 1024 X 16m Color
NETWORKING & COMMUNICATION:
Networking: Network Adapter – Plug-In Card
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller(S): 2 X Hp Nc373i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 2
Features: Wake On Lan (Wol)
Compliant Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DESCRIPTION:
Type: 800 Watt Power Supply – Hot-Plug
Installed Qty: 2
Max Supported Qty: 4
Nominal Voltage: Ac 120/230 V(50/60 Hz)
Power Redundancy: Optional
