General Information:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 487502-001

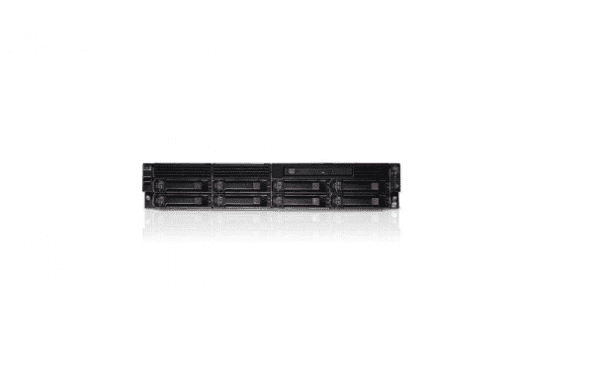

Product Name: Proliant Dl180 G6 2u Rack Mount Server
Processor & Chipset:
Processor Type: Intel Xeon Processor E5504 (2.00 Ghz, 80w, Ddr3-800)
Multi-Core Technology: Quad-Core
Sockets Supported: Fclga1366
64-Bit Computing: Yes
Installed Processor Qty: 1
Max Supported Qty: 2
Mainboard Chipset Type: Intel 5520
Cache Memory:
Cache Memory Type: L3 Cache
Installed Size: 4 Mb
Cache Per Processor: 4 Mb
Memory:
Installed Ram Size: 4 Gb / 192 Gb (Max)
Technology: Ddr3 Sdram – Advanced Ecc
Memory Specification Compliance: Pc3-10600
Form Factor: Dimm 240-Pin
12 DDR3 Slots
Storage:
Hard Drive: None.
Optical Drive: None.
Storage Controller:
Storage Controller Type: SAta
Controller Interface Type: Serial Ata-300
Raid Level: Raid 0, Raid 1
Display & Graphics Controller:
Graphics Controller Type: Integrated
Max Allocated Ram Size: 32 Mb
Networking:
Networking: Network Adapter – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller(S): Hp Nc362i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Expansion & Connectivity:
Expansion Bays Total (Free):
12 ( 11 ) X Hot-Swap – 3.5 X 1/3h (12 Bays)
Expansion Slots Total (Free):
1 ( 1 ) X Pci Express X16 – Low-Profile
2 ( 2 ) X Pci Express X8 – Full-Length, Full-Height
12 ( 10 ) X Memory – Dimm 240-Pin
2 ( 1 ) X Processor
