GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 487507-001

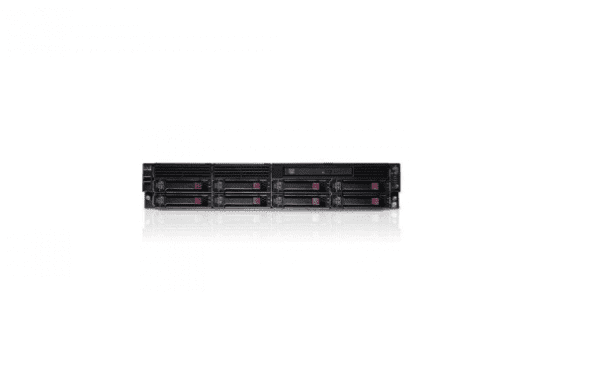

Product Name: Proliant Dl180 G6 2u Rack Mount Server
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon Processor E5540 (2.53 Ghz, 8mb L3 Cache, 80w,
Ddr3-1066, Ht, Turbo 1/1/2/2)
Multi-Core Technology: Quad-Core
64-Bit Computing: Yes
Installed Qty: 2
Max Supported Qty: 2
Processor Main Features: Hyper-Threading Technology
Processor Sockets Supported: Fclga1366
Mainboard Chipset Type: Intel 5520
CACHE MEMORY:
Cache Memory Type: L3 Cache
Installed Size: 8 Mb
Cache Per Processor: 8 Mb
MEMOER:
Installed Ram Size: 12 Gb / 96 Gb (Max)
Technology: Ddr3 Sdram – Advanced Ecc
Memory Speed: 1333 Mhz
Memory Specification Compliance: Pc3-10600r (Rdimm)
Form Factor: Dimm 240-Pin
Configuration Features: 6 X 2 Gb
STORAGE:
Hard Drive: None Ship Standard
(Up To 12 Hot Plug Sata Or Sas Drives Supported)
Optical Drive: None Ship Standard
Internal Storage Supports:
24.0tb (12 X 2tb Hot Plug 3.5in Sata Hard Drives), Maximum 12 Bays
24.0tb (12 X 2tb Hot Plug 3.5in Sas Hard Drives), Maximum
Note: Internal Storage Expandable To 14 Sas/Sata Drives With 2 Rear
Drive Option Kit (P/N 488234-B21)
STORAGE CONTROLLER:
Storage Controller Type: Raid
Controller Interface Type: Serial Ata-150 / Sas
Raid Level: Raid 0, Raid 1
Buffer Size: 256 Mb
Storage Controller: Hp Smart Array P212 /256mb Controller (Raid 0/1/1+0/5/5+0)
Note: The Minimum Of 256 Mb Cache, Battery Kit, And Smart Array
Advanced Pack License Key Upgrade (P/N 516471-B21) Is Required To
Enable Raid 6, 6+0
DISPLAY & GRAPHICS CONTROLLER:
Graphics Controller Type: Integrated
Max Allocated Ram Size: 32 Mb
NETWORKING:
Networking: Network Adapter – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller(S): Hp Nc362i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet.
