General information:
Manufacturer : Hewlett-packard
Manufacturer part number : 490932-001

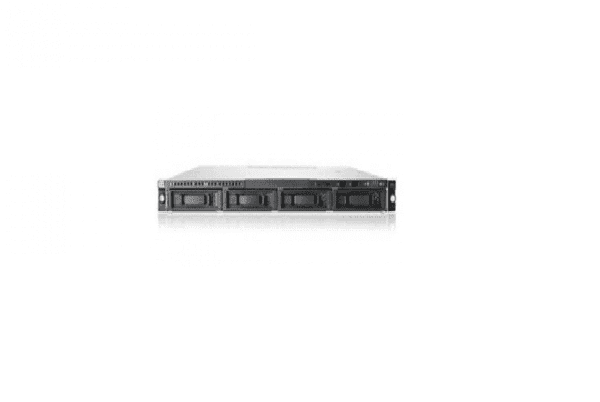

Product name : proliant dl120 g6 server (performance model).
Processor & chipset :
Processor type : intel xeon x3450 (2.67ghz, 95w, 8mb, 1333)
Multi-core technology : quad-core.
64-bit computing : yes.
Installed qty : 1
Max supported qty : 1
Upgradability : upgradable.
Chipset type : intel 3420
Cache memory :
Cache memory type : l3 cache
Installed size : 8 mb
Cache per processor : 8 mb
Ram :
Installed ram size : 4 gb
Max supported size : 8 gb
Memory technology : ddr3 sdram – ecc
Memory speed : 1066 mhz
Memory specification compliance : pc3-10600
Form factor : dimm 240-pin.
Features : unbuffered.
Configuration features : 2 x 2 gb
Storage & storage controller :
Hard drive : none.
Internal storage support:4 large form factor non-hot plug drives.
Optical drive : none.
Storage controller type : sata
Controller interface type : serial ata-300/sas
Storage controller name : smart array p212
Raid level : raid 0, raid 1, raid 10
Buffer size : 256 mb
Display & graphics controller :
Graphics controller type : integrated.
Graphics processor : shared video memory (uma)
Max allocated ram size : 64 mb
Networking :
Networking : network adapter – integrated.
Ethernet controller : hp nc107i
Data link protocol : ethernet, fast ethernet, gigabit ethernet.
Expansion / connectivity :
Expansion bays total (free):
1 ( 1 ) x front accessible – 5.25in slim line.
4 ( 4 ) x internal – 3.5in x 1/3h
Expansion slots total (free):
1 ( 1 ) x pci express x4 – half-length, low-profile.
1 ( 1 ) x pci express x16 – full-length.
6 ( 6 ) x memory – dimm 240-pin.
1 ( 0 ) x processor.
Interfaces/ports :
1 x serial – rs-232 – 9 pin d-sub (db-9)
1 x display / video – vga – 15 pin hd d-sub (hd-15)
4 x usb – 4 pin usb type a
1 x network – ethernet 10base-t/100base-tx/1000base-t – rj-45
1 x management – hp ilo – rj-45
Power description :
Power device type : power supply
Voltage required : ac 120/230 v ( 50/60 hz )
Power provided : auto-sensing 400 watt pfc
