General Information :
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 491324-001

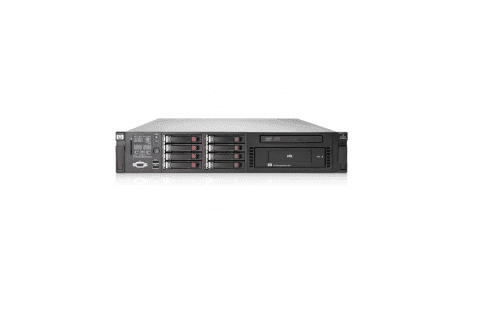

Product Name: Proliant Dl380 G6 2u Rack Rack Server
Processor & Chipset:
Processor Type: Intel Xeon E5530 Qc 2.4 Ghz
Multi-Core Technology: Quad-Core
64-Bit Computing: Yes
Installed Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable
Mainboard Chipset Type: Intel 5520
Data Bus Speed: 1066 Mhz
Cache Memory:
Cache Memory Type: L3 Cache
Installed Size: 8 Mb
Cache Per Processor: 8 Mb
Ram:
Installed Size: 6 Gb / 192 Gb (Max)
Technology: Ddr3 Sdram
Memory Speed: 1333 Mhz
Memory Specification Compliance: Pc3-10600
Form Factor: Dimm 240-Pin
Features: Registered
Configuration Features: 3 X 2 Gb
Storage & Storage Controller:
Storage Hard Drive: None
Storage Controller Type: 1 X Raid – Plug-In Card – Pci Express X8
Controller Interface Type: sAta-150 / Sas
Storage Controller Name: Smart Array P410i
Channel Qty: 8
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size: 256 Mb
Display & Graphics Controller:
Graphics Controller Type: Integrated
Graphics Processor: Ati Es1000
Video Memory: 32 Mb
Networking:
Networking: Network Adapter – Integrated
Ethernet Ports: 4 X Gigabit Ethernet
Ethernet Controller(S): 2 X Hp Nc382i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 2
Features: Wake On Lan (Wol), Acpi Support
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (Lacp)
Power Device:
Power Device Type: Power Supply – Hot-Plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (With Optional Power Supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 460 Watt
