General Information:
Manufacturer: Hewlett packard
Manufacturer part number: 495834-B21

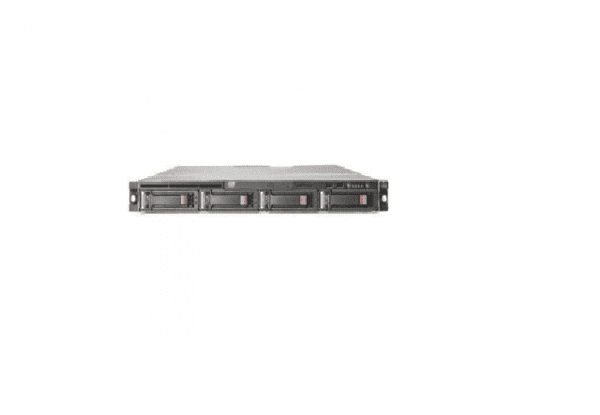

Product name: proliant dl160 g5p 1u rack Mount server
Processor & chipset:
Processor install: no cpu
Max supported qty: 2
Upgradability: upgradable
Chipset type: intel 5400
Memory:
Installed ram size: 0 mb
Technology: ddr2 sdram
Form factor: fb-dimm 240-pin
Features: fully buffered
8 DDR2 Slots
Storage:
Hard drive: none.
Storage controllers:
Storage controller type: 1 x ide – integrated
Display & graphics:
Graphics controller type: integrated
Network & communication:
Networking: network adapter – integrated
Ethernet ports: 2 x gigabit ethernet
Ethernet controller(s): hp nc105i
Data link protocol: ethernet, fast ethernet, gigabit ethernet
Features: wake on lan (wol), acpi support
Compliant standards: ieee 802.3, ieee 802.3u, ieee 802.3ab
Expansion & connectivity:
Expansion bays total (free):
1 (total) / 1 (free) x front accessible – 5.25 slim line
4 (total) / 4 (free) x hot-swap – 3.5 x 1/3h (4 Bays)
Expansion slots total (free):
1 (total) / 1 (free) x pci express x16 – low-profile
1 (total) / 1 (free) x pci express x16 – full-length, full-height
8 (total) / 8 (free) x memory – fb-dimm 240-pin
2 (total) / 2 (free) x processor
Interfaces & ports:
1 x keyboard – generic – 6 pin mini-din (ps/2 style)
1 x mouse – generic – 6 pin mini-din (ps/2 style)
1 x serial – rs-232 – 9 pin d-sub (db-9)
1 x display / video – vga – 15 pin hd d-sub (hd-15)
5 x usb – 4 pin usb type a ( 2 front, 2 rear, 1 internal )
2 x network – ethernet 10base-t/100base-tx/1000base-t – rj-45
1 x management – hp ilo – rj-45
Power description:
Device type: power supply
Installed qty: 1
Max supported qty: 1
Voltage required: ac 120/230 v ( 50/60 hz )
Power provided: 650 watt
