General Information :
Manufacturer: Hewlett Packard
Manufacturer Part Number: 495835-B21

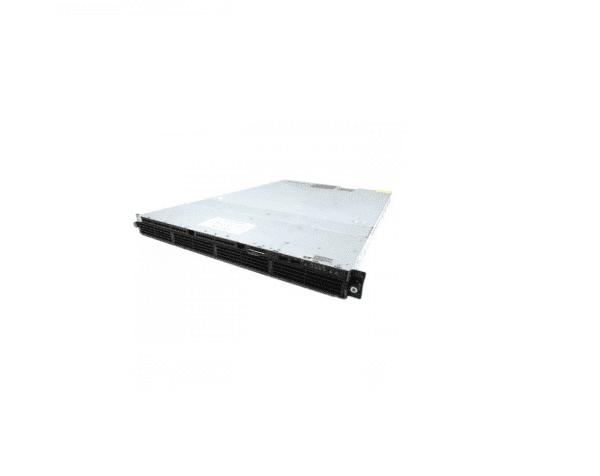

Product Name: Proliant Dl160 G5p 1u Rack Mount Server Cto Chassis
Processor & Chipset :
Processor Install : No Cpu
Max Supported Qty : 2
Upgradability : Upgradable
Chipset Type : Intel 5400
Memory :
Installed Ram Size: 0 Mb
Maximum Memory : 64 Gb (16 X 4 Gb)
Technology: Ddr2 Sdram
Form Factor: Fb-Dimm 240-Pin
Features: Fully Buffered
Storage :
Hard Drive : None
Hard Drive Bays :
Non-Hot Plug Sata : Up To 4 Non-Hot Plug Sata 3.5in Drives
Hot Plug Sata/Sas : Up To 4 Hot Plug Sas/Sata 3.5in Drives
Maximum Internal Storage Supports :
Non-Hot Plug Sata : 3.0 Tb 4 X 750 Gb
Hot Plug Sata : 4.0 Tb 4 X 1 Tb
Hot Plug Sas : 4.0 Tb 4 X 1 Tb
Storage Controllers :
Non-Hot Plug Sata Models : Hp Embedded Sata Raid Controller (Integrated Into The South-Bridge) Supporting Sw Raid 0,1
Hot Plug Sata/Sas Models : Hp Sc40ge Hba With Raid 0, 1
Display & Graphics :
Graphics Controller Type : Integrated
Network & Communication :
Networking: Network Adapter – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller(S): Hp Nc105i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Features: Wake On Lan (Wol), Acpi Support
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Power Description :
Device Type: Power Supply
Installed Qty: 1
Max Supported Qty: 1
Voltage Required: Ac 120/230 V ( 50/60 H
