GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 504634-001

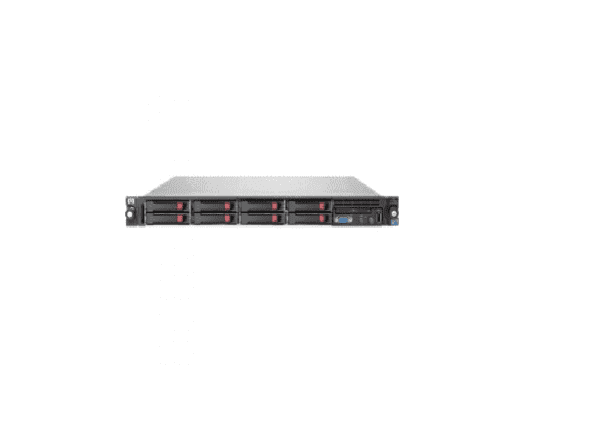

Product Name: Proliant Dl360 G6 1u Rack mount Server (Base Model)
PROCESSOR & CHIPSET :
CPU : Intel Xeon E5540 / 2.53 Ghz
Max Turbo Speed : 2.8 Ghz
Number Of Cores : Quad-CORE
64-Bit Computing : Yes
CPU Qty : 1
Max CPU Qty : 2
CPU Upgradability : Upgradable
Chipset Type : Intel 5520
Front Side Bus : 1066 Mhz
CACHE MEMORY:
Cache Memory Type: L3 Cache
Installed Size: 8 Mb
Cache Per Processor : 8 Mb
MEMORY :
Installed Size : 6 Gb / 144 Gb (Max)
Technology : Ddr3 Sdram
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered
Configuration Features : 3 X 2 Gb
STORAGE:
Hard Drive: None.
Optical Drive: None.
STORAGE CONTROLLER :
Type : 1 X Raid – Plug-In Card – Pci Express X4
Controller Interface Type : Sata 1.5gb/S / Sas
Storage Controller Name : Smart Array P410i
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size : 256 MB
DISPLAY & GRAPHICS CONTROLLER :
Type : Integrated
Graphics Processor : Ati Es1000
Video Memory : 32 Mb
Video Interfaces : Vga
NETWORK & COMMUNICATION :
Type : Integrated
Interface (Bus) Type : Pci Express X4
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Hp Nc382i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2 Standard
Features : Wake On Lan (Wol), Acpi Support
Compliant Standards : IEEE 802.3, IEEE 802.3U, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1P, IEEE 802.3AD (LACP)
POWER DESCRIPTION:
Device Type: Power Supply – Hot-Plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (With Optional Power Supply)
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz )
Power Provided: 460 Watt
