General Information :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 505684-001

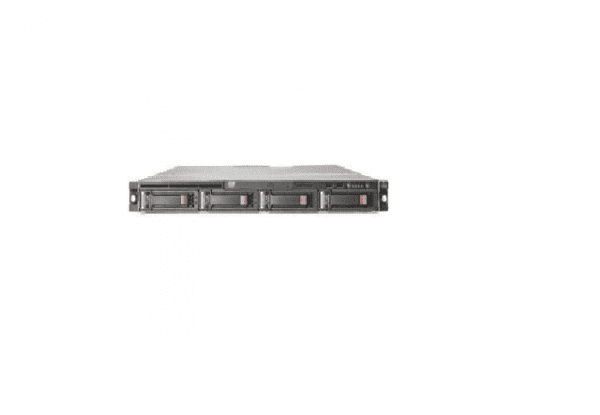

Product Name : Proliant Dl320 G6 Performance Server
1U Rack Mount Server
Processor & Chipset :
Processor Type : Intel Xeon E5530 / 2.40ghz
Multi-Core Technology : Quad-Core
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 1
Upgradability : Upgradable
Chipset Type : Intel 5520
Cache Memory :
Cache Memory Type : L3 Cache
Installed Size : 8 Mb
Cache Per Processor : 8 Mb
RAM :
Installed Size : 6 Gb
Max Supported Size : 192 Gb
Technology : Ddr3 Sdram – Ecc
Memory Speed : 1066 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered
Configuration Features : 3 X 2 Gb
Ram Supported : Pc3-8500 – 192 Gb – Registered – Ecc Pc3-8500 – 24 Gb – Unbuffered – Ecc
Storage & Storage Controller :
Hard Drive : None
Optical Drive : None
Internal Storage : 4 X 2tb 3.5 In Hot Plug Sata/Sas, Maximum.
Note: Sas Requires Optional Pci Controller
Storage Controller Type(1st): 1 X Raid – Plug-In Card
Controller Interface Type : Serial Ata-300 / Sas
Storage Controller Name : Smart Array P410
Channel Qty : 2
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50
Buffer Size : 256 Mb
Storage Controller Type (2nd) : 1 X Serial Ata – Integrated.
Controller Interface Type : SAta-150
Channel Qty : 2
Raid Level : Raid 0, Raid 1
Display & Graphics Controller :
Graphics Controller Type : Integrated
Graphics Processor : Ati Es1000
Video Memory : 32 Mb
Networking :
Networking : Network Adapter – Integrated
Ethernet Ports : 2 X Gigabit Ethernet
Ethernet Controller : Hp Nc326i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Features : Wake On Lan (Wol), Acpi Support, Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Power Device :
Power Device Type : Power Supply
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
