GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 507782-B21

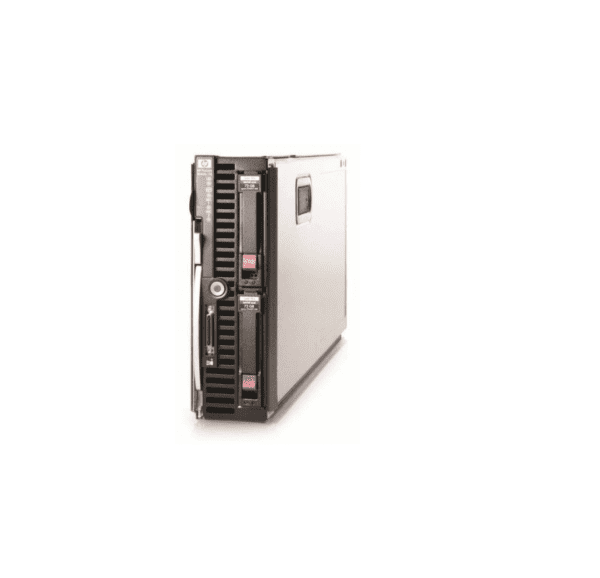

Product Name : Proliant Bl460c G6 Blade Server
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon E5520 / 2.26ghz
Multi-Core Technology : Quad-Core
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
Processor Main Features : Hyper-Threading Technology.
Chipset Type : Intel 5500
Data Bus Speed : 1066 Mhz
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 8 Mb
Cache Per Processor : 8 Mb
RAM :
Installed Size : 6 Gb
Max Supported Size : 96 Gb
Technology : Ddr3 Sdram
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered
Configuration Features : 3 X 2 Gb
STORAGE & STORAGE CONTROLLER :
Hard Drive : None
Internal Storage :
Sas: 1tb (2 X 500gb Sas)
Sata: 1tb (2 X 500gb Sata)
Sata Ssd: 240gb (2 X 120gb Sata Ssd)
Storage Controller Type : 1 X Raid – Plug-In Card – Pci Express X4
Controller Interface Type : Serial Ata-150 / Sas
Storage Controller Name : Smart Array P410i
Raid Level : Raid 0, Raid 1
2 Bays
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated
Graphics Processor : Ati Rn50
Video Memory : 32 Mb Ddr Sdram
NETWORKING :
Networking : Network Adapter – Pci Express X4 – Integrated.
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : Hp Nc532i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2
Features : Wake On Lan (Wol)
Compliant Standards : IEEE 802.3U, IEEE 802.3Z, IEEE 802.1Q, IEEE 802.1P,
