GENERAL INFORMATION:
Manufacturer: Hewlett Packard
Manufacturer Part Number: 507787-B21

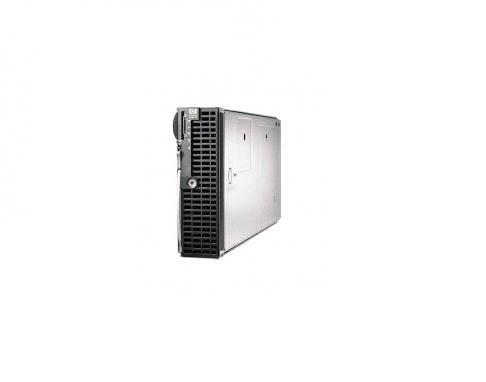

Product Name: Proliant Bl280c G6 – Blade Server.
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5540 2.53 Ghz
Multi-Core Technology: Quad-Core (4 Core)
64-Bit Computing: Yes
Compatible Processor Socket: Lga1366 Socket
Installed Processor Qty: 1
Max Supported Qty: 2
Upgradability: Upgradable
Chipset Type: Intel 5500
CACHE MEMORY:
Type: L3 Cache
Installed Size: 8 MB
Cache Per Processor: 8 MB
MEMORY:
Installed Ram Size: 2 Gb / 192 Gb (Max)
Technology: Ddr3 Sdram
Memory Speed: 1333 Mhz
Memory Specification Compliance: Pc3-10600
Form Factor: Dimm 240-Pin
Features: Registered
12 DDR3 Slots
STORAGE:
Hard Drive: None.
Optical Drive : None.
STORAGE CONTROLLERS:
Storage Controllers Type: Serial Ata – Integrated
Controller Interface Type: SAta-300
Raid Level: RAID 0, RAID 1
DISPLAY & GRAPHICS:
Type: Integrated
Video Memory: 32 MB
NETWORKING:
Networking: Network Adapter – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller(S): Hp Nc362i
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 2
Features: Wake On Lan (Wol)
EXPANSION & CONNECTIVITY:
Expansion Bays Total (Free):
2 ( 2 ) X Internal – 2.5 Sff (2 Bays)
Expansion Slots Total (Free):
12 Dimm Slots
2 ( 1 ) X Processor
Interfaces & Ports:
2 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45
1 X Management – Hp Ilo – Rj-45
DIMENSIONS & WEIGHT:
Width : 2 In
Depth : 20.1 In
Height: 7.1 In
