GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 509314-B21

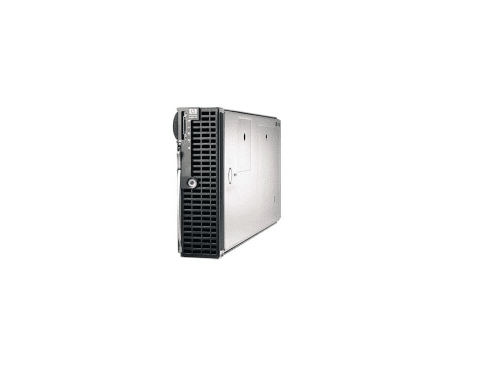

Product Name : Proliant Bl490c G6 Blade Server
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon X5570/2.93ghz
Multi-Core Technology : Quad-Core
64-Bit Computing : Yes
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
Processor Main Features : Hyper-Threading Technology
Chipset Type : Intel 5500
Data Bus Speed : 1333 Mhz
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 8 Mb
Cache Per Processor : 8 Mb
RAM :
Installed Size : 6 Gb
Max Supported Size : 144 Gb
Technology : Ddr3 Sdram
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered
Configuration Features : 3 X 2 Gb
STORAGE & STORAGE CONTROLLER :
Hard Drive : None
Card Reader Type : Card Reader
Supported Flash Memory Cards : Sd Memory Card
Storage Controller Type : 1 X Sata – Integrated
DISPLAY & GRAPHICS :
Graphics Controller Type : Integrated
Graphics Processor : Ati Rn50
Video Memory : 32 Mb Ddr Sdram
NETWORKING :
Networking : Network Adapter – Pci Express X4 – Integrated
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : Hp Nc532i
Data Link Protocol : Ethernet,Fast Ethernet,Gigabit Ethernet,10 Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2
Features : Wake On Lan (Wol)
Compliant Standards : IEEE 802.3U, IEEE 802.3Z, IEEE 802.1Q, IEEE 802.1P,
IEEE 802.3X, IEEE 802.3AD (LACP), IEEE 802.3AE, IEEE 802.3AP
