GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 510078-B21

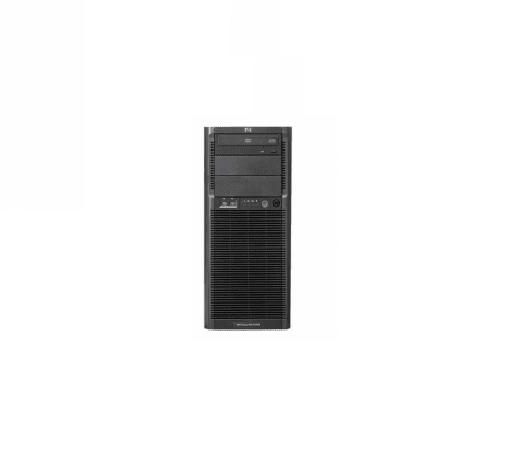

Product Name : Proliant Ml110 G6 Cto Chassis Server
PROCESSOR & CHIPSET :
Processor Type : Intel Xeon Processor
Cpu Socket : Lga1156 Socket
Max Supported Qty: 1
Upgradability: Upgradable
Chipset Type: Intel 3420
RAM :
Installed Size : 0 Gb
Max Supported Size : 16 Gb
Technology : Ddr3 Sdram
Form Factor : Dimm 240-Pin
Features : Unbuffered
4 DDR3 Slots
STORAGE & STORAGE CONTROLLER :
Hard Drive : None
Optical Drive : None
Storage Controller Type : Integrated
Channel Qty : 6
DISPLAY & GRAPHICS CONTROLLERS :
Graphics Controller Type : Integrated
Max Allocated Ram Size : 64 Mb
Video Interfaces : Vga
NETWORK & COMMUNICATION :
Networking : Network Adapter – Integrated
Interface (Bus) Type : Pci Express
Ethernet Controller(S) : Hp Nc107i
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller : Integrated Lights Out 100i Remote Management Processor
Features : Wake On Lan (Wol)
EXPANSIONS & CONNECTIVITY :
Expansion Bays Total (Free) :
2 (Total) / 2 (Free) X External 5.25in X 1/2h
4 (Total) / 4 (Free) X Internal 3.5in X 1/3h (4 Bays)
Expansion Slots Total (Free) :
1 (Total) / 1 (Free) X Pcie X8 – Full-Length, Full-Height
1 (Total) / 1 (Free) X Pcie X16 – Full-Length, Full-Height ( X1 Mode )
1 (Total) / 1 (Free) X Pci – Full-Length, Full-Height
1 (Total) / 1 (Free) X Pcie X4 – Half-Length, Full-Height
1 (Total) / 1 (Free) X Cpu
4 (Total) / 4 (Free) X Dimm 240-Pin
INTERFACES & PORTS :
1 X Serial – Rs-232 – 9 Pin D-Sub (Db-9)
1 X Display / Video (Vga)
6 X Usb – 4 Pin Usb Type A ( 2 Front, 4 Rear )
1 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45
POWER DEVICE :
Device Type : Power Supply
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Provided : 300 Watt
