GENERAL INFORMATION:
Manufacturer : Hewlett Packard
Manufacturer Part Number : 518859-B21

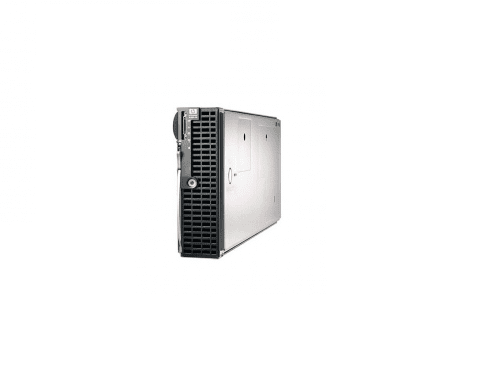

Product Name : Proliant Bl465c G7 Blade Server.
PROCESSOR & CHIPSET :
Processor Type : Amd Opteron Processor Model Opteron 6174 (2.2 Ghz)
Multi-Core Technology : 12-Core
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
64-Bit Computing : Yes
Chipset : Amd Sr5690/Sp5100
CACHE MEMORY :
Cache Memory Type : L3 Cache
Installed Size : 12 Mb
Cache Per Processor : 12 Mb
RAM :
Installed Size : 8 Gb
Max Supported Size : 128 Gb
Ram Technology : Ddr3 Sdram
Memory Speed : 1333 Mhz
Memory Specification Compliance : Pc3-10600
Form Factor : Dimm 240-Pin
Features : Registered
Configuration Features : 2 X 4 Gb
STORAGE & STORAGE CONTROLLER :
Hard Drive : None.
Optical Drive : None.
Max Internal Storage : 1tb Sas, 1tb Sata, 240gb Sata Ssd.
Storage Controller Type : 1 X Raid – Pci Express 2.0 X4
Controller Interface Type : Serial Ata-300 / Sas 2.0
Storage Controller Name : Smart Array P410i With 1gb Fbwc.
Raid Level : Raid 0, Raid 1
Buffer Size : 1 Gb
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated
Graphics Processor : Ati Rn50
NETWORKING :
Networking : Network Adapter – Integrated
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : Hp Nc551i
Data Link Protocol : 10 Gigabit Ethernet
Remote Management Controller : Integrated Lights-Out 2
Features : Wake On Lan (Wol)
Compliant Standards :
Ieee 802.1q, Ieee 802.1p, Ieee 802.3x
Ieee 802.3ad (Lacp), Ieee 802.3ap
