GENERAL INFORMATION :
Manufacturer : Hewlett Packard
Manufacturer Part Number : 518878-B21

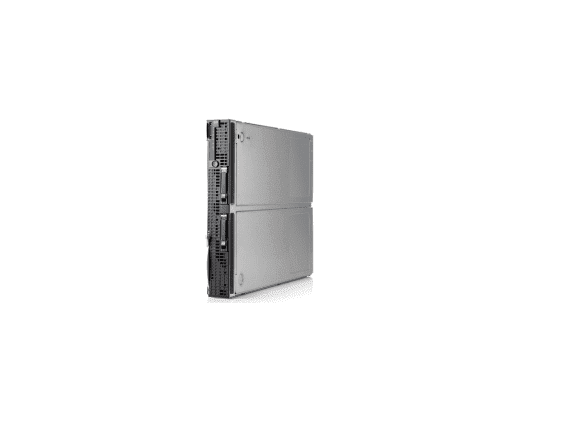

Product Name : Proliant Bl685c G7 Sff 4-Way Cto Server Chassis
Blade Server
PROCESSOR & CHIPSET :
Processor Type : Amd Opteron Processor
Socket : G34-Lga-1944
Installed Qty : 0
Max Supported Processor : 4
Upgradability : Upgradable
Chipset Type : Amd Sr5690 And Sp5100
Cache Memory : 6200 And 6300 Series 16 Mb Level 3 Cache Memory
RAM :
Installed Size : 0 Gb
Max Supported Size : 1tb (32 X 32gb) At 1066 Mhz Or At 800 Mhz
Ram Technology : Ddr3 Sdram – Advanced Ecc
Form Factor : Dimm 240-Pin
32 DDR3 Slots
Features : Quad Channel Memory Architecture
Memory Speed : 1333mhz, 1066mhz, Or 800mhz
STORAGE & STORAGE CONTROLLER :
Hard Drive : None
Total Hard Drive Capacity : 2.24 Tb
Storage Controller : Hp Smart Array P410i Controller 1gb Memory Module With Flash Backed Wrie Cache (Fwbc). Supports Raid 0,1.
CARD READER :
Card Reader : None
Supported Flash Memory : Cardsmicrosd, Microsdhc
Display & Graphics Controller :
Integrated : Ati Rn-50 (1280 X 1024 X 16m Color)
Resolution Color Depths :
1280 X 1024, 16.7m , 64k, 256,16
1024 X 768, 16.7m, 64k, 256, 16
800 X 600, 16.7m, 64k, 256, 16
640 X 480, 16.7m, 64k, 256, 16
NETWORKING :
Networking Type : Integrated
Interface (Bus) Type : Pci Express 2.0 X8
Ethernet Ports : 4 X 10 Gigabit Ethernet
Ethernet Controller : 2 X Hp Nc551i
Data Link Protocol : 10 Gigabit Ethernet Converged Network
Remote Management Protocol : Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-Out 3
Features : Wake On Lan (Wol)
Compliant Standards : Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.3ap
EXPANSION & CONNECTIVITY :
Expansion Bays Total (Free) :
2 (Total) / 2 (Free) X 2.5in Sff Sas/Sata/Ssd Hot Plug Drive 2 Bays
Expansion Slots Total (Free) :
4 (Total) / 4 (Free) X Processor
32 (Total) / 32 (Free) X Memory – Dimm 240-Pin
3 (Total) / 3 (Free) X Expansion Slot
Interfaces :
1 X Vga
4 X Lan (10gigabit Ethernet)
1 X Hp Ilo
1 X Usb 2.0 ( 1 Internal )
Compliant Standards : Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.3a
