GENERAL INFORMATION:
Manufacturer: Hewlett Packard.
Manufacturer Part Number: 519577-005

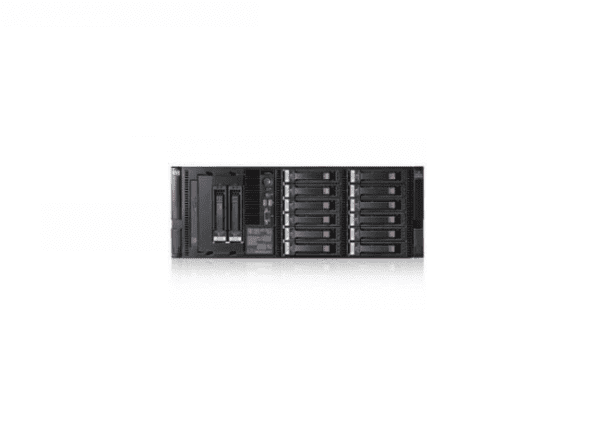

Product Name: Proliant Dl370 G6 4u Rack-Mount Server.
PROCESSOR & CHIPSET:
Processor Type: Intel Xeon E5540(2.53 Ghz, 8mb L3, 80w)
Multi-Core Technology: Quad-Core.
64 Bit Computing: Yes.
Installed Qty: 2
Max Supported Qty: 2
Upgradability: Upgradable.
Chipset Type: Intel 5520
Data Bus Speed: 1066 Mhz
CACHE MEMORY:
Cache Memory Type: L3 Cache
Installed Size: 16 Mb
Cache Per Processor: 8 Mb ( 2 X 4mb (4mb Per Core Pair) )
RAM:
Installed Size: 8 Gb
Max Ram Supported Size: 144 Gb
Technology: Ddr3 Sdram
Memory Speed: 1333 Mhz
Memory Specifications Compliance: Pc-3 10600
Form Factor: Dimm 240-Pin
Features : Registered, Dual Rank.
Configuration Features: 2 X 4 Gb
Memory Protection: Advanced Ecc, Mirrored Memory, Online Spare.
STORAGE & CONTROLLER:
Hard Drive: None
Optical Storage Type: Dvd-Rom – SAta.
Storage Controller Type(1st: 1 X Raid – Plug-In Card – Pci Express X8
Controller Interface Type: SAta-150 / Sas.
Storage Controller Name: Smart Array P410i With 512mb Bbwc.
Raid Level: Raid 0, Raid 1,Raid 10.
Storage Controller Type (2nd): 1 X Ide – Integrated.
Controller Interface Type: Ide/Ata
DISPLAY & GRAPHICS CONTROLLER:
Graphics Type: Integrated.
Installed Size: 64 Mb.
NETWORKING:
Networking: Network Adapter Integrated.
Ethernet Ports: 4 X Gigabit Ethernet.
Ethernet Controller: Hp Nc375i
Data Link Protocol: Ethernet Fast Ethernet Gigabit Ethernet.
Remote Management Controller : Integrated Lights-Out 2 Standard.
Features : Wake On Lan (Wol)
Compliant Standards:
Ieee 802.3, Ieee 802.3u, Ieee 802.1
Ieee 802.3ab-Ieee 802.1p-Ieee 802.3ad (Lacp)
POWER DEVICE:
Power Device Type: Power Supply Hot Plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: Ac 120/230 V (50/60 Hz)
Power Provided: 750 Watt.
Installed Size: 64 Mb.
