General information :
Manufacturer: hewlett packard.
Manufacturer part number: 533548-001

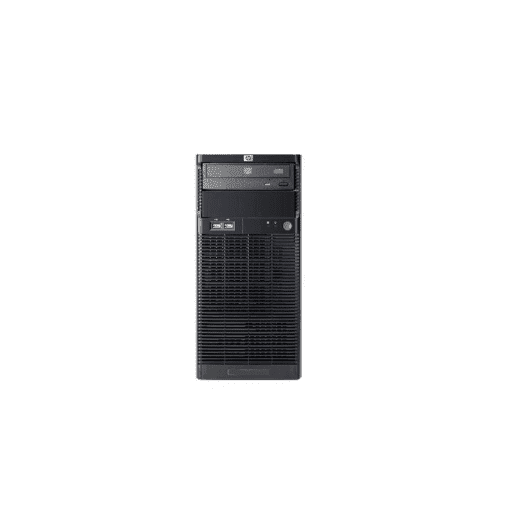

Product name: proliant ml110 g5 server 4u tower server
Processor & chipset :
Processor type : intel xeon e3100 / 3.0
Multi-core technology : quad-core
64-bit computing : yes
Installed qty: 1
Max supported qty: 1
Upgradability: upgradable
Chipset type : intel 3200
Data bus speed : 1333 mhz
Cache memory :
Cache memory type : l2 cache
Installed size : 6 mb
Cache per processor : 6 mb
Ram :
Installed size : 1 gb
Max supported size : 8 gb
Technology : ddr3 sdram -ecc
Memory speed : 800 mhz
Memory specification compliance : pc3-6400
Form factor : dimm 240-pin.
4 DDR3 Slots
Configuration features : 1 x 2 gb
Storage & storage controller :
Hard drive : 1 x 160gb 3.5-inch non-hot-plug lff sata hdd.
Optical drive : half-height 16x sata dvd-rom.
Internal storage : non-hot plug lff sata: maximum 8.0tb (4 x 2tb)
Storage controller type : 1 x serial ata – integrated .
Channel qty : 4
Raid level : raid 0, raid 1, raid 10
Display & graphics controller :
Graphics controller type : integrated
Video memory : 32 mb
Supported resolution : 1600 x 1200 x 16m
Networking :
Networking : network adapter – pci express- integrated.
Ethernet controller : hp nc105i
Data link protocol : ethernet, fast ethernet, gigabit ethernet
Features : wake on lan (wol)
Expansion & connectivity :
Expansion bays total (free):
2 ( 1 ) x front accessible – 5.25in x 1/2h
4 ( 3 ) x internal – 3.5in x 1/3h (4 Bays)
Expansion slots total (free):
1 ( 1 ) x pci express x8 – full-length, full-height.
2 ( 2 ) x pci express x8 – full-height ( x1 mode )
1 ( 1 ) x pci – full-height.
4 ( 3 ) x memory – dimm 240-pin.
1 ( 0 ) x processor – lga775 socket.
Interfaces :
1 x display / video – vga – 15 pin hd d-sub (hd-15)
1 x keyboard – generic – 6 pin mini-din (ps/2 style)
1 x mouse – generic – 6 pin mini-din (ps/2 style)
1 x serial – rs-232 – 9 pin d-sub (db-9)
6 x usb – 4 pin usb type a ( 2 front, 4 rear )
