General Information :
Manufacturer : Hewlett-packard
Manufacturer part number : 538278-001

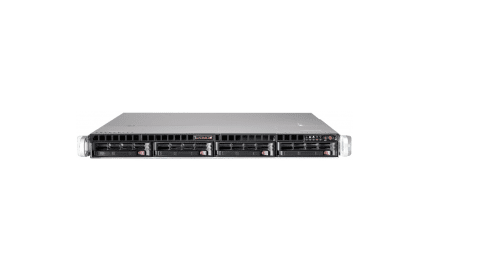

Product name : proliant dl165 g6 1u rack Mount server
Processor & chipset :
Processor type : amd opteron 2427 / 2.2GHz
Multi-core technology : 6-core
64-bit computing : yes
Installed qty : 1
Max supported qty : 2
Upgradability: upgradable
Chipset type : serverworks ht1000 / ht2100
Cache memory :
Cache memory type : l3 cache
Installed size : 6 mb
Cache per processor : 6 mb
Memory :
Installed size: 4 gb
Max supported qty: 64 gb
Technology : ddr2 sdram – advanced ecc
Memory speed : 800 mhz
Memory specification compliance : pc2-6400
8 DDR2 Slots
Form factor : dimm 240-pin
Features : registered
Configuration features : 2 x 2 gb
Storage & storage controller :
Hard drive : none
Optical drive : none
Storage controller type : 1 x Sata – integrated
Controller interface type : serial ata-150 / sas
Storage controller name : smart array p212 (538278-xx1)
Channel qty : 4
Display & graphics controller :
Graphics controller type : integrated
Video memory : 32mb shared supporting 1600x1200x16m resolution
Networking :
Networking : network adapter – integrated
Ethernet ports : 2 x gigabit ethernet
Ethernet controller : hp nc7782
Data link protocol : ethernet, fast ethernet, gigabit ethernet
Features : wake on lan (wol), acpi support
Compliant standards : ieee 802.3, ieee 802.3u, ieee 802.3ab
Expansion & connectivity :
Expansion bays total (free):
1 ( 1 ) x front accessible – 5.25 in slim line
4 ( 3 ) x internal – 3.5 in x 1/3h (4 Bays)
Expansion slots total (free):
1 ( 1 ) x pci express x8 – low-profile ( x8 mode )
1 ( 1 ) x pci express x16 – full-length, full-height
8 ( 6 ) x memory – dimm 240-pin
2 ( 1 ) x processor
1 ( 1 ) x pci-x – low-profile
